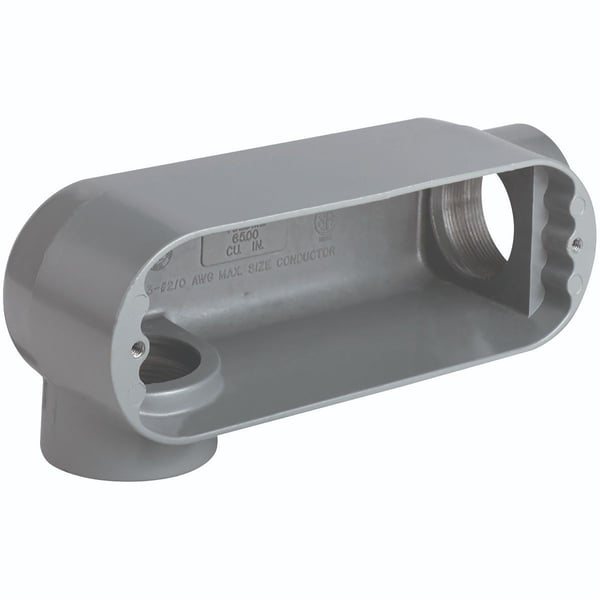

Killark® Duraloy® 5 OLR-6 O Series Type LR Conduit Body, 2 in Hub, 70 cu-in Capacity, Aluminum, Powder Coated
Killark® Duraloy® 5 OLR-6 O Series Type LR Conduit Body, 2 in Hub, 70 cu-in Capacity, Aluminum, Powder Coated
SKU: KLROLR-6
Manufacturer Part Number: OLR-6
UPC: 783936490564
Documents
Short Description
Features
- Raintight when used with gasketed covers
- Malleable iron suitable for use in concrete
- Stainless steel screws on stamped and cast covers
- Interchangeable with competitive products
- Tapered threaded hubs (NPT)
- To provide access to conductors for pulling, splicing, and maintenance
- Copper-free aluminum (less than 4/10 of 1%)
- Suitable for wet locations when used with gasketed covers
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, div. 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
- Electrostatically applied powder coat
Specification
| Hub Size | 2 in |
|---|---|
| Material | Copper Free Aluminum |
| Number of Hubs | 2 |
| Series | O Series |
| Type | Type LR |
| Application | Threaded for rigid conduit and IMC |
| Standard & Approvals | CSA File No LR11852, Federal Specification W-C-586D/A-A 50563, UL File No E3397 |
| Dimensions | 10-9/16 in L x 4-3/16 in W x 3-1/2 in H |
| Capacity | 70 cu-in |
| Color | Gray |
| Connection Type | Threaded |
| Finish | Powder Coated |
