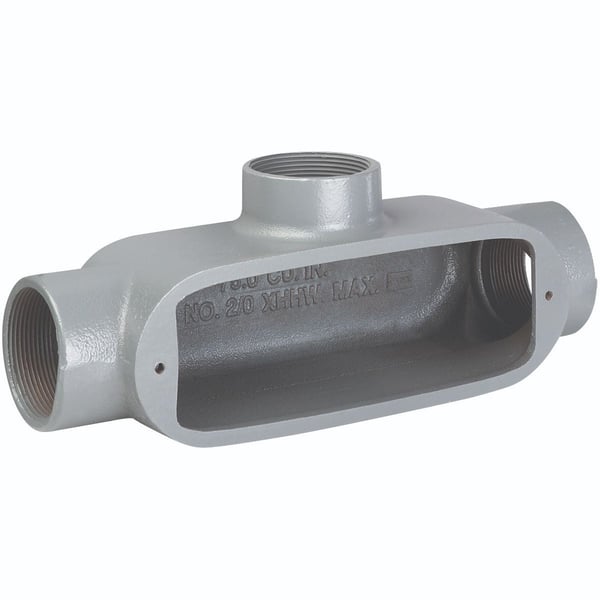

Killark® Duraloy® 5 OT-4 O Series Type T Conduit Body, 1-1/4 in Hub, 5 Form, 32 cu-in Capacity, Aluminum, Powder Coated
Killark® Duraloy® 5 OT-4 O Series Type T Conduit Body, 1-1/4 in Hub, 5 Form, 32 cu-in Capacity, Aluminum, Powder Coated
SKU: KLROT-4
Manufacturer Part Number: OT-4
UPC: 783936530048
Documents
Short Description
Features
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Interchangeable with competitive products
- Suitable for wet locations when used with gasketed covers
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b), Class I, Div. 2, (Suitable for use in Class I Zone 2 applications) 502.10 and 503.10
- Copper Free Aluminum
- Electrostatically Applied Powder Coated
Specification
| Hub Size | 1-1/4 in |
|---|---|
| Material | Aluminum |
| Number of Hubs | 3 |
| Series | O Series |
| Type | Type T |
| Application | For used to provide access to conductors for pulling, splicing and maintenance and threaded for Rigid and IMC Conduit |
| Standard & Approvals | UL E3397 Listed, CSA LR11852 Certified, RoHS Compliant |
| Capacity | 32 cu-in |
| Color | Gray |
| Finish | Powder Coated |
| Form | Form 5 |
| Connection Type | Tapered NPT |
| Dimensions | 9-3/16 in L x 3-1/2 in W x 2-5/8 in H |
