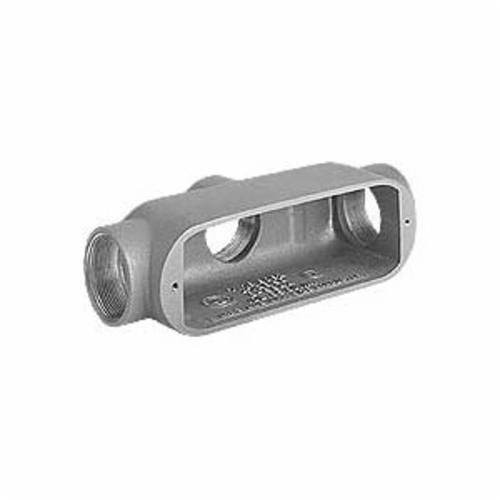

Killark® Duraloy® 5 OTB-6 O Series Type TB Conduit Body, 2 in Hub, Form 7 Form, 70 cu-in Capacity, Aluminum, Powder Coated
Killark® Duraloy® 5 OTB-6 O Series Type TB Conduit Body, 2 in Hub, Form 7 Form, 70 cu-in Capacity, Aluminum, Powder Coated
SKU: KLROTB-6
Manufacturer Part Number: OTB-6
UPC: 783936530161
Documents
Short Description
Features
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Interchangeable with competitive products
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b), Class I, Div. 2, (Suitable for use in Class I Zone 2 applications) 502.10 and 503.10
- Flat back
- Copper Free Aluminum
- Electrostatically Applied Powder Coated
Specification
| Hub Size | 2 in |
|---|---|
| Material | Aluminum |
| Number of Hubs | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 70 cu-in |
| Catalog ID | KLROTB-6 |
| Color | Gray |
| Connection Type | Threaded |
| Dimensions | 11-5/8 in L x 3-1/8 in W x 4-5/8 in H |
| Finish | Powder Coated |
| Form | 7 |
| Series | O/DURALOY 5 |
| Type | Type TB |
| Application | To provide access to conductors for pulling, splicing and maintenance and threaded for rigid conduit and IMC |
| Standard & Approvals | CSA LR11852 Certified, UL E3397 Listed, RoHS Compliant |
