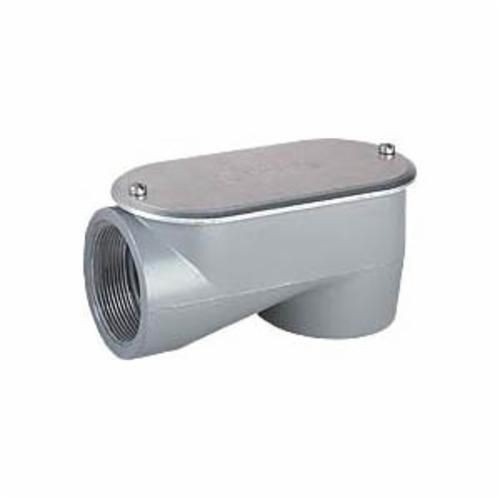

Killark® SLB-4 Type LB Mogul Conduit Body With Cover and Gasket, 1-1/4 in Hub, Aluminum, Powder Coated

Selected SLB-4Killark® SLB-4 Type LB Mogul Conduit Body With Cover and Gasket, 1-1/4 in Hub, Aluminum, Powder Coated
SLB-4Killark® SLB-4 Type LB Mogul Conduit Body With Cover and Gasket, 1-1/4 in Hub, Aluminum, Powder Coated

Documents

Short Description

Killark has become a global provider of harsh and hazardous location products. The Killark range encompasses industrial and explosion proof fittings engineered to withstand the toughest extremes in climate from the dry and arid Middle East, tropical Asia to frozen Northern Canada.

Features

  • Mogul fittings are normally used where the standard "O" Series conduit bodies do not offer a sufficient amount of wiring room
  • For right angle bends where splices, pulls, and taps are needed in a weather-proof chamber
  • Designed for easier wire pulling
  • Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b), Class I, Div. 2, (Suitable for use in Class I Zone 2 applications) 502.10 and 503.10.
  • Copper-free aluminum (less than 4/10 of 1%)
  • Electrostatically Applied Powder Coated finish
  • Copper Free Aluminum

Specification

Hub Size
1-1/4 in
Material
Aluminum
Number of Hubs
2
Type
Type LB
Dimensions
5-9/16 in L x 2-3/16 in W x 2-1/2 in H
Color
Gray
Finish
Powder Coated
Form
Mogul
Standard & Approvals
UL E22698 Listed, CSA File LR11852 Certified, Federal Specification W-C-586D/A-A 50563, RoHS Compliant
Application
For used where the standard "O" Series conduit bodies do not offer a sufficient amount of wiring room, right angle bends where splices, pulls, and taps are needed in a weather-proof chamber
Series
SLB
