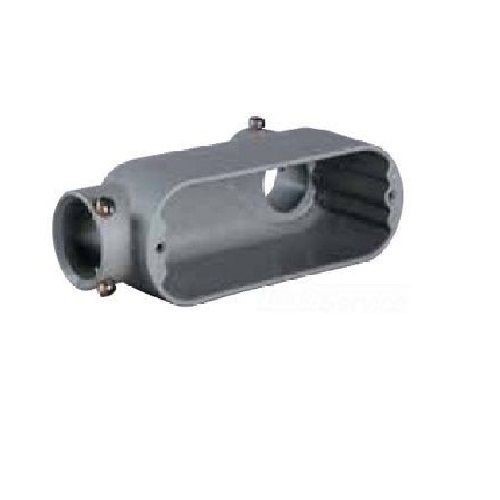

Killark® K-PAK® TWOLB-3 Type LB Thinwall Conduit Body With Cover, Gasket, 1 in Hub, 12 cu-in Capacity, Aluminum, Powder Coated

Selected Killark® K-PAK® TWOLB-3 Type LB Thinwall Conduit Body With Cover, Gasket, 1 in Hub, 12 cu-in Capacity, Aluminum, Powder Coated
Killark® K-PAK® TWOLB-3 Type LB Thinwall Conduit Body With Cover, Gasket, 1 in Hub, 12 cu-in Capacity, Aluminum, Powder Coated

Documents

Short Description

Killark has become a global provider of harsh and hazardous location products. The Killark range encompasses industrial and explosion proof fittings engineered to withstand the toughest extremes in climate from the dry and arid Middle East, tropical Asia to frozen Northern Canada.

Features

  • Combination bodies have threaded and set screw hubs
  • Easy installation
  • Complete selection of sizes and hub configurations
  • To make bends in the conduit system
  • Copper-free aluminum (less than 4/10 of 1%)
  • Connect conduit sections
  • Provide access to the interior of a conduit system
  • As a pulling outlet
  • Provide openings for taps or splices
  • Thinwall
  • Electrostatically Applied Powder Coated finish
  • Copper Free Aluminum

Specification

Hub Size
1 in
Material
Aluminum
Mounting Type
Screw
Number of Hubs
2
Series
TWO
Type
Type LB
Application
For to provide access to conductors for pulling, splicing, maintenance and for future changes or upgrades
Dimensions
6.089 in L x 1.75 in W x 1.875 in H
Capacity
12 cu-in
Color
Gray
Finish
Powder Coated
Connection Type
Threadless
Standard & Approvals
UL E3397 Listed, CSA LR11852 Certified, RoHS Compliant
