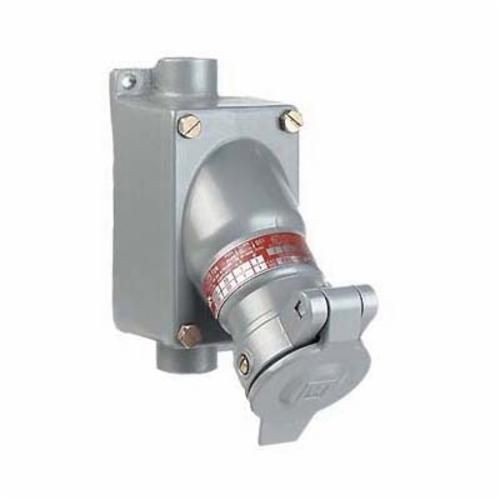

Killark® ACCEPTOR® UGRO-20232 1-Gang Interchangeable Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray
Killark® ACCEPTOR® UGRO-20232 1-Gang Interchangeable Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU: KLRUGRO-20232
Manufacturer Part Number: UGRO-20232
UPC: 783936998732
Documents
Features
- All external hardware is 316 stainless steel to provide low maintenance and long life
- Factory sealed chamber in UGR receptacle contains switch's arcing components
- No additional external seals are required, except in Group B applications
- Aluminum interchangeable blade style
- Copper-Free Aluminum
- Single Gang
- Explosionproof
Specification
| Material | Aluminum |
|---|---|
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Voltage Rating | 250 VAC |
| Amperage Rating | 20 A |
| Color | Gray |
| Dimensions | 3 in W x 4-3/16 in D x 6 in H |
| Standard & Approvals | CSA Certified, RoHS Complaint, UL Listed 498 File No. E2186 Class 1, Group C, D, F, G |
| Application | For Petroleum refineries, chemical plants, wet/damp areas, corrosive environments, petroleum plants, grain elevators/feed mills, flour and feed mills, and indoor or outdoor locations |
| Series | UGRO |
| NEMA Rating | NEMA 6-20R/3/7BCD/9FG |
