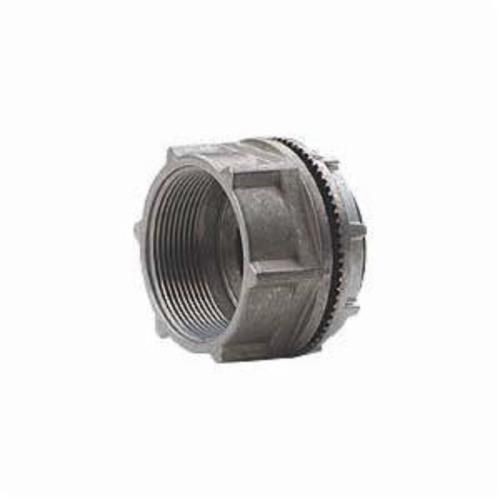

KILLARK® WH-1 Weatherproof Conduit Hub, 1/2 in, For Use With Sheet Metal Electrical Enclosure, Die Cast Zinc, Natural

Selected WH-1KILLARK® WH-1 Weatherproof Conduit Hub, 1/2 in, For Use With Sheet Metal Electrical Enclosure, Die Cast Zinc, Natural
WH-1KILLARK® WH-1 Weatherproof Conduit Hub, 1/2 in, For Use With Sheet Metal Electrical Enclosure, Die Cast Zinc, Natural

Documents

Short Description

Killark is a leading manufacturer of weatherproof, harsh and hazardous location products suitable for standard, explosion proof and other hostile and adverse environment applications. these products include conduit raceway fittings, junction boxes, enclosures, lighting fixtures, plugs & receptacles, plus standard and custom controls. Killark is a major participant in the OEM, commercial and industrial construction and MRO segments of both the domestic and international electrical construction materials market.

Features

  • Oversized locknut provides for a strong vibration-proof termination
  • Captive sealing ring
  • Serrations on hub body and locknut provide effective positive ground path
  • Insulated throat protects conductors
  • Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b), class I, Div. 2, (suitable for use in class I Zone 2 applications) 502.10, 503.10 and 505-15
  • Suitable for use with NEMA type enclosures 2, 3, 3R, 4, 12 and 13
  • The hubs fit into standard knock-out dimensions
  • Buna-N sealing ring
  • 1/2-14 NPSM thread

Specification

Material
Die Cast Zinc
Series
WH
Size
1/2 in
Suitable For Use With
Sheet Metal Electrical Enclosure
Type
Weatherproof
Application
For provides a liquid tight, oil tight and dust tight termination of electrical conduit through the walls of sheet metal enclosures
Standard & Approvals
UL Listed, CSA Certified, NEC Articles 501.10(b), Class I, Div. 2, (Suitable for use in Class I Zone 2 applications) 502.10, 503.10 and 505-15, RoHS Complaint
Dimensions
1.437 in L x 1.437 in W x 1.5 in H
Color
Gray
Finish
Natural
