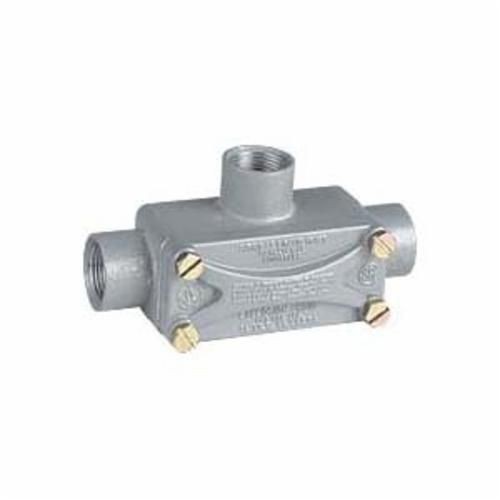

Killark® XT-3 Type T Conduit Body, 1 in Hub, 11.5 cu-in, Aluminum, Powder Coated

Selected XT-3Killark® XT-1 XT Series Type T Conduit Body, 1/2 in Hub, 4.3 cu-in Capacity, Aluminum, Powder Coated
XT-3Killark® XT-1 XT Series Type T Conduit Body, 1/2 in Hub, 4.3 cu-in Capacity, Aluminum, Powder Coated

Documents

Short Description

Killark has become a global provider of harsh and hazardous location products. The Killark range encompasses industrial and explosion proof fittings engineered to withstand the toughest extremes in climate from the dry and arid Middle East, tropical Asia to frozen Northern Canada.

Features

  • Integral bushings
  • Easy access covers
  • Copper Free Aluminum
  • Electrostatically Applied Powder Coated

Specification

Hub Size
1 in
Material
Aluminum
Number of Hubs
3
Minimum Order Qty
1
Order Interval
1
Capacity
11.5 cu-in
Color
Gray
Finish
Powder Coated
Series
X/XALB
Type
Type T
Application
For use in hazardous locations
Standard & Approvals
UL E10514 Listed, CSA LR11716 Certified, Class I, Div. 1 & 2, Groups C, D, Class II, Div. 1 & 2, Groups E, F, G Class III, RoHS Compliant
Dimensions
6-11/16 in L x 3-1/2 in W x 2-1/2 in H
Catalog ID
KLRXT-3
