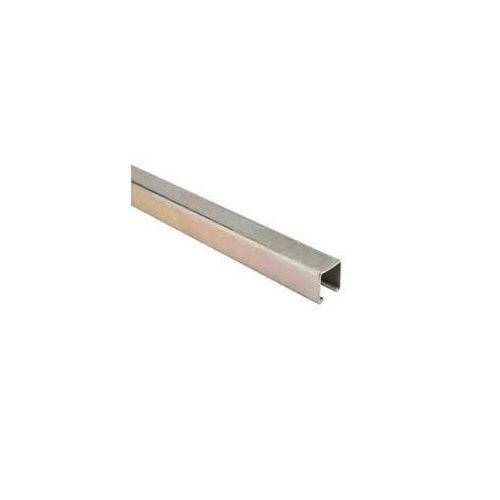

Kindorf® B-900-10 B Series Solid Metal Channel, 12 ga THK, 10 ft L

Pick Up Only
Selected Kindorf® B-900-10 B Series Solid Metal Channel, 12 ga THK, 10 ft L
Kindorf® B-900-10 B Series Solid Metal Channel, 12 ga THK, 10 ft L

Documents

Short Description



Order in increments of 10
Priced per foot



The Kindorf® channel system is designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and materials. The 1 1/2" dimension in the channel, hole spacing and fittings means all parts fit together all the time. This modular system provides maximum flexibility in field applications and results is labor savings and reduced material waste.

Features

  • Designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and pieces
  • The 1-1/2 in dimension in the channel, hole spacing and fittings means all parts fit together, no matter where they are used, or at what angle
  • The modular dimension provides maximum flexibility in field applications and results in saving inventory and labor dollars
  • Even though Kindorf channel is slightly smaller in dimensions it supports the same weight as 1-5/8 in channel
  • The Kindorf system is designed so that most accessories are compatible with 1-5/8 in strut, conduit and pipe straps will work equally well with 1-5/8 in and 1-1/2 in strut
  • 98 percent of 1-5/8 in accessories are interchangeable in Kindorf channel

Specification

Length
10 ft
Material
Steel
Thickness
12 ga
Width
1-1/2 in
Standard & Approvals
RoHS Compliant
Application
For Support and Framing Applications
Depth
1-1/2 in
Finish
Gold Plated
