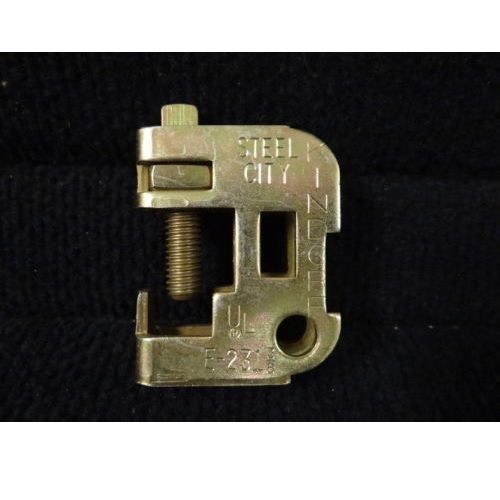

Kindorf® E-231-3/8 Structural Beam Clamp, 3/8 in Rod, 0.8 in THK Flange, 500 lb Load, Steel, Galv-Krom®

Selected Kindorf® E-231-3/8 Structural Beam Clamp, 3/8 in Rod, 0.8 in THK Flange, 500 lb Load, Steel, Galv-Krom®
Kindorf® E-231-3/8 Structural Beam Clamp, 3/8 in Rod, 0.8 in THK Flange, 500 lb Load, Steel, Galv-Krom®

Documents

Short Description

Kindorf® devices for hanging the load can deliver lower installation costs. hanger rod and conduit pipe supports are attached to ceilings or to other structural members such as beams, columns or purlins, without drilling, welding or fastening by means of power-actuated tools. A full selection of beam clamps and hanger rod supports are offered to meet a wide variety of needs.

Features

  • High vibrations are expected, additional support can be attained by gripping the beam on both sides
  • Two sizes available, one for 3/8 in and the other for 1/2 in hanger rod
  • Assembly requires two H-116-C ( 3 /8 in ) or two H-116-D ( 1 /2 in ) square nuts to attach hanger rod, 1/8 in steel
  • Safety factor of 3
  • Hanger rod support
  • Galv-Krom/standard finish

Specification

Load Capacity
500 lb
Material
Steel
Minimum Order Qty
1
Order Interval
1
Catalog ID
S-CE231-3/8
Dimensions
2-1/2 in L
Finish
Galv-Krom
Flange Thickness
0.8 in
Rod Size
3/8 in
Application
Clamps to I-Beams, Channels, Angles and Column
Standard & Approvals
CSA Certified
