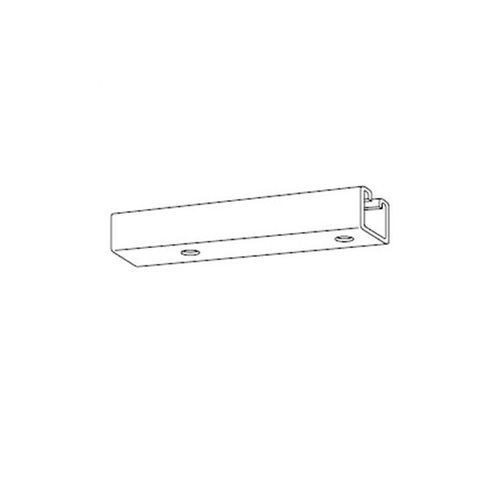

Kindorf® G-975-10 Fixture Channel, 1/2 in Slots, 12 ga THK, 10 ft L
Kindorf® G-975-10 Fixture Channel, 1/2 in Slots, 12 ga THK, 10 ft L
SKU: S-CG975-10
Manufacturer Part Number: G97510
UPC: 785991781878
Documents
Short Description
Order in increments of 10
Priced per foot
The Kindorf® channel system is designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and materials. The 1 1/2" dimension in the channel, hole spacing and fittings means all parts fit together all the time. This modular system provides maximum flexibility in field applications and results is labor savings and reduced material waste.
Features
- Punched 1/2 in holes on 6 in centers
- Fixture attaches to knockouts by G 972 1/2 nipple for wiring or a G 974 stud nut where wiring is not required
- U shape profile
- Designed to provide a combination fixture support and surface raceway
- 1/2 in knockout on 6 in centers
- 12 ga steel
Specification
| Material | Steel |
|---|---|
| Minimum Order Qty | 10 |
| Order Interval | 10 |
| Finish | Galv-Krom |
| Standard & Approvals | UL Listed, CSA Certified |
| Depth | 1-1/2 in |
| Catalog ID | S-CG975-10 |
| Length | 10 ft |
| Slot Size | 1/2 in |
| Width | 1-1/2 in |
