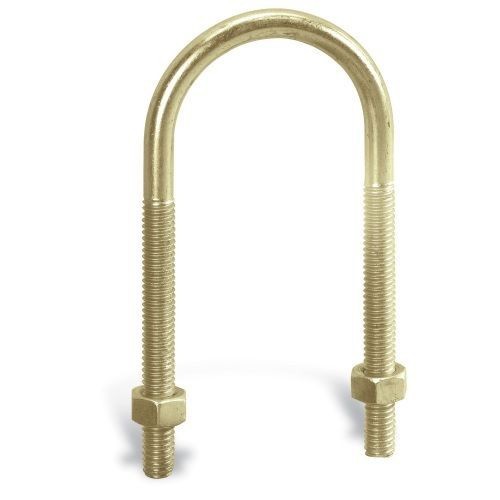

Kindorf® H-286-3/4 Right Handed Thread U-Bolt, 5/16-18, GoldGalv®, Steel

Selected Kindorf® H-286-3/4 Right Handed Thread U-Bolt, 5/16-18, GoldGalv®, Steel
Kindorf® H-286-3/4 Right Handed Thread U-Bolt, 5/16-18, GoldGalv®, Steel

Documents

Short Description

The Kindorf® channel system is designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and materials. the 1 1/2 in dimension in the channel, hole spacing and fittings means all parts fit together all the time. this modular system provides maximum flexibility in field applications and results is labor savings and reduced material waste.

Features

  • U bolt to support, anchor or guide pipe lines
  • 1-3/4 in thread length
  • Furnished with one hex nut per leg in Galv-Krom
  • 3-1/16 in L x 1-1/8 in Dia x 5/16 in THK dimensions

Specification

Material
Steel
Trade Size
3/4 in
Finish
Galv-Krom
Thread Size
5/16/2018 12:00:00 AM
Standard & Approvals
CSA Certified, Fed Spec WW-H-171E and MSS SP-69 Type 24, RoHS Compliant
Application
For Anchor or Guide Pipe Lines
Load Capacity
2000 lb
