Klein® 93LCLG Self-Leveling Laser Level, 50 deg Horizontal, 50 deg Vertical Measuring, +/-3/32 in per 33 ft Vertical and Horizontal Beams, +/-1/8 in per 33 ft Plum Spot Accuracy, Alkaline Battery, ABS Housing

Selected 93LCLGKlein® 93LCLG Self-Leveling Laser Level, 50 deg Horizontal, 50 deg Vertical Measuring, +/-3/32 in per 33 ft Vertical and Horizontal Beams, +/-1/8 in per 33 ft Plum Spot Accuracy, Alkaline Battery, ABS Housing
93LCLGKlein® 93LCLG Self-Leveling Laser Level, 50 deg Horizontal, 50 deg Vertical Measuring, +/-3/32 in per 33 ft Vertical and Horizontal Beams, +/-1/8 in per 33 ft Plum Spot Accuracy, Alkaline Battery, ABS Housing

Documents

Short Description

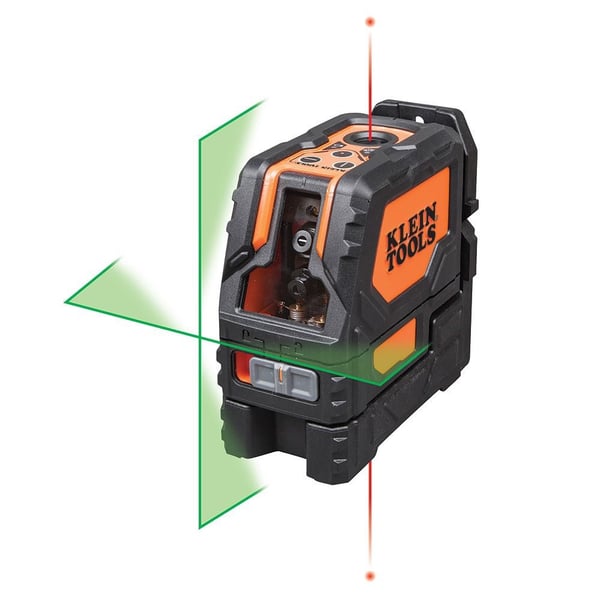

The Klein® self-leveling green cross line laser level is a high performance laser leveling and alignment tool for professionals. This level provides a reliable pendulum self-leveling system with clear, bright laser level lines and a 90 deg vertical plumb spot feature. Equipped with an integrated magnetic mount and an additional ceiling clip mount, Klein® cross line level enables a multitude of alignment and layout applications.

Features

  • Self-leveling laser level is easy to read with green horizontal and vertical laser lines and red plumb spot lasers
  • Projects horizontal and vertical lines independently or together to address various alignment tasks
  • Integrated magnetic 360 deg mounting bracket with 1/4 in and 5/8 in tripod mounting threads
  • Magnetic bracket facilitates attachment to ferromagnetic objects such as steel studs, doors, beams or electrical panels
  • Additional mounting clamp attachment for use on ceiling grid applications
  • Low battery indicator and easily accessible battery compartment
  • IP54 water and dust-resistant
  • 0.1 to 0.99 adjustable emissivity
  • High and low temperature points, crosshairs to pinpoint specific temperatures, options for temperature alarms, 3 color pallets

Specification

Housing Material
ABS
Laser Class
2
Measuring Range
50 deg Horizontal, 50 deg Vertical
Number of Beams
4
Temperature Rating
-4 to 752 deg F
Type
Self-Leveling
Wavelength
515 to 530 nm Cross Lines/630 to 680 nm Plum Spots
Application
For view hot and cold spots for instant troubleshooting, self leveling laser alignment instrument that delivers horizontal and or vertical cross lines and or plumb spots
Standard & Approvals
21 CFR 1040.10/1040.11, CE Certified, ECCN: EAR99, EN 608251:2014, EN 61326-1:2013, PROP65: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information
Dimensions
5.3 in L x 2.6 in W x 5 in H
Bare Tool Kit
Kit
Battery Type
Alkaline
Includes
Hard Carrying Case, Instruction Manual, Mounting Clamp and (3) AA 1.5 V Alkaline Batteries
Accuracy
+/-3/32 in per 33 ft Vertical and Horizontal Beams, +/-1/8 in per 33 ft Plum Spot
