Klein® 93PLL Laser Levels, +/- 4.5 mm Accuracy, 3 Beams

Selected 93PLLKlein® 93PLL Laser Levels, +/- 4.5 mm Accuracy, 3 Beams
93PLLKlein® 93PLL Laser Levels, +/- 4.5 mm Accuracy, 3 Beams

Documents

Short Description

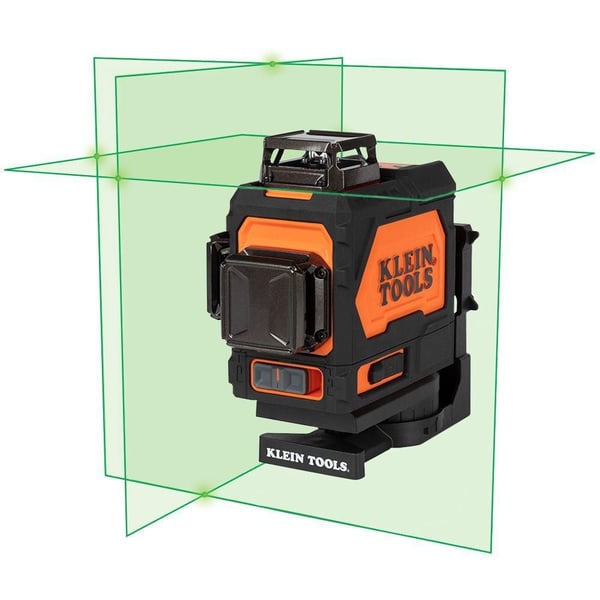

The Klein Tools' Rechargeable Self-Leveling Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level, and offers plumb up and plumb down marks. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications. This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power =1mW @ 510-530nm).

Features

  • Rechargeable Self-Leveling Green Planar Laser Level has easy-to-read with high visibility green horizontal and vertical laser lines
  • Projects independently or together in X-, Y- and Z-planes for various layout and alignment options
  • View the upward and downward plumb marks at the intersection of the Y-plane and Z-plane
  • More than 9 hr run time with integrated rechargeable Li-Ion battery
  • Rugged body provides IP54 water and dust resistance

Specification

Type
Laser Level
Wavelength
510 to 530 nm
Application
For Self-Leveling Laser Alignment Instrument
Standard & Approvals
EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018, 21 CFR 1040.1 and 1040.11
Minimum Order Qty
1
Order Interval
1
Video
http://youtu.be/JL2To6nfG1o
Accuracy
+/- 4.5 mm
Beam Color
Green
Catalog ID
KLE93PLL
Dimensions
3.5 in H x 4.8 in W x 5.5 in L
Laser Class
Class 2
Material
ABS Housing and Electronic Components
Number of Beams
3
EANUCC13
0092644692789
Includes
Li-Ion Battery, USB-A to USB-C Cable, Magnetic Mounting Bracket, and Hard Carrying Case
