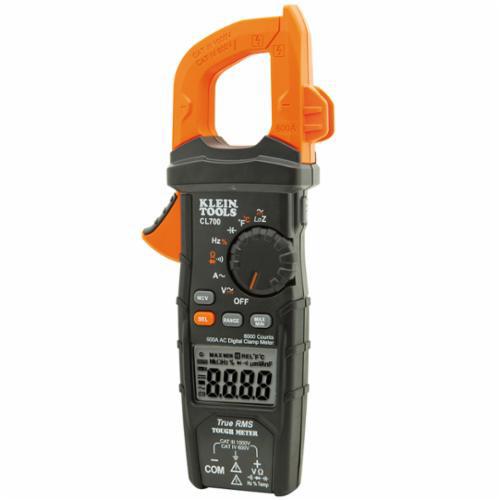

Klein® CL700 AC Auto-Ranging Low Impedance Mode Digital Clamp Meter, 1000 VAC/VDC, 600 A, 60 MOhm, 50 to 400 Hz, 1-3/8 in Jaw, LCD Display

Selected CL700Klein® CL700 AC Auto-Ranging Low Impedance Mode Digital Clamp Meter, 1000 VAC/VDC, 600 A, 60 MOhm, 50 to 400 Hz, 1-3/8 in Jaw, LCD Display
CL700Klein® CL700 AC Auto-Ranging Low Impedance Mode Digital Clamp Meter, 1000 VAC/VDC, 600 A, 60 MOhm, 50 to 400 Hz, 1-3/8 in Jaw, LCD Display

Documents

Short Description

The CL700 is an auto-ranging TRMS digital clamp meter that measures AC current via the clamp, and measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages

Features

  • Automatically ranging true mean squared (TRMS) technology for increased accuracy
  • Dual backlit display
  • Measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
  • Clamp measures AC current and thermocouple probe measure temperature
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • Low battery indicator and easily accessible battery compartment
  • 2 deg pollution, 6.6 ft Drop Protection, 6562 ft operating altitude, IP40, 6000 uF capacitance test
  • AC current range - 60 A with accuracy +/-(2% + 8 digits), 10 mA resolution, 600 A with accuracy of +/-(2% + 5 digits), 100 mA resolution
  • Resistance range - 600 Ohm with accuracy of +/-(1.5% + 5 digits), 0.1 Ohm resolution, 6 kOhm with accuracy of +/-(1.5% + 5 digits), 1 Ohm resolution, 60 kOhm with accuracy of +/-(1.5% + 5 digits), 10 Ohm resolution, 600 kOhm with accuracy of +/-(1.5% + 5 digits), 100 Ohm resolution, 6 MOhm with accuracy of +/-(1.5% + 5 digits), 1 kOhm resolution, 60 MOhm with accuracy of +/-(2% + 10 digits), 10 kOhm resolution
  • AC voltage range - 6 V with accuracy of +/-(1.5% + 5 digits), 1 mV resolution, 60 V with accuracy of +/-(1.2% + 5 digits), 10 mV resolution, 600 V with accuracy of +/-(1.2% + 5 digits), 100 mV resolution, 1000 V with accuracy of +/-(1.5% + 5 digits), 1 V resolution
  • DC voltage range - 600 mV with accuracy of +/-(1% + 8 digits), 0.1 mV resolution, 6 V with accuracy of +/-(1.2% + 3 digits), 1 mV resolution, 60 V with accuracy of +/-(1.2% + 3 digits), 10 mV resolution, 600 V with accuracy of +/-(1.2% + 3 digits), 100 mV resolution, 1000 V with accuracy of +/-(1.2% + 3 digits), 1 V resolution
  • Capacitance range - 60 nF with accuracy of +/-(5% + 35 digits), 0.010 nF resolution, 600 nF with accuracy of +/-(3% + 5 digits), 0.1 nF resolution, 6 uF with accuracy of +/-(3% + 5 digits), 0.001 uF resolution, 60 uF with accuracy of +/-(3% + 5 digits), 0.01 uF resolution, 600 uF with accuracy of +/-(5% + 5 digits), 0.1 uF resolution, 6000 uF with accuracy of +/-(5% + 5 digits), 1 uF resolution

Specification

Frequency Rating
50 - 400 Hz
Jaw Capacity
1-3/8 in
Operating Temperature
32 - 104 deg F
Power Source
(2) AAA Battery
Resistance
60 MOhm
Safety Rating
CAT IV 600V, CAT III 1000V, Class 2, Double Insulation
Voltage Accuracy
+/-(1.5% + 5 digits) AC, +/-(1.2% + 3 digits) DC
Application
For Use In Basic And Controlled Electromagnetic Environments Like Residential, Office And Light-Industrial Locations
Standard & Approvals
CE Certified, C/US ETL Listed ; Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
Dimensions
3.82 in W x 1.54 in D x 9.09 in H
AC Current Accuracy
+/-(2% + 5 digits)
AC Response
True-rms
Counts
6000
Display
LCD
Electrical Rating
1000 VAC/VDC, 600 A
Includes
41 in Test Leads, Batteries, Carrying Case, Thermocouple With Adapter
