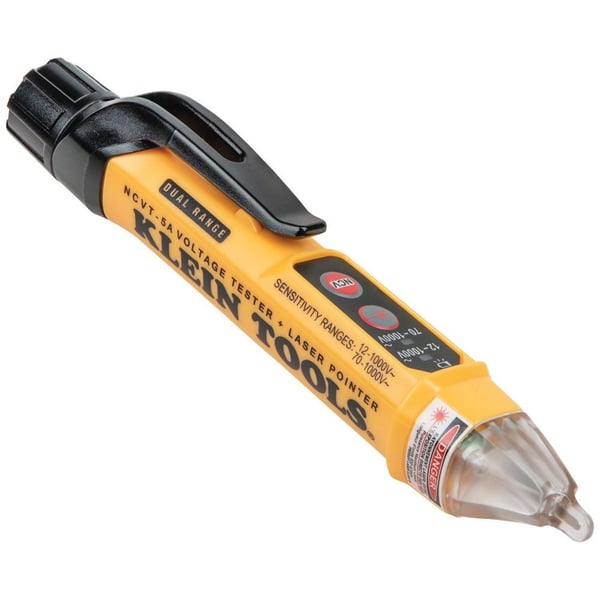

Klein® NCVT-5A Dual Range Non-Contact Voltage Tester With Laser Pointer, 70 to 1000 VAC/12 to 1000 VAC Max Measurable

Selected NCVT-5AKlein® NCVT-5A Dual Range Non-Contact Voltage Tester With Laser Pointer, 70 to 1000 VAC/12 to 1000 VAC Max Measurable
NCVT-5AKlein® NCVT-5A Dual Range Non-Contact Voltage Tester With Laser Pointer, 70 to 1000 VAC/12 to 1000 VAC Max Measurable

Documents

Short Description

The Klein® NCVT-5A is a dual range non-contact voltage tester (NCVT) with integrated laser pointer. The tester can be set to detect voltage from 70 to 1000 VAC (Mode 1) or from 12 to 1000 VAC (Mode 2). High pitched audible alerts beep at greater frequency as higher voltage is sensed or proximity to the voltage source gets closer. The laser pointer can function independent of or simultaneously with the NCVT. CAT IV 1000 V safety rating.

Features

  • Voltage tester provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control and irrigation systems
  • Dual range testing - select 12 to 1000 VAC which is perfect for low voltage systems such as doorbells, environmental control or irrigation systems or select 70 to 1000 VAC which is perfect for detecting systems such as electrical mains supply
  • Bright integrated laser pointer for identifying objects of interest at distance on the jobsite
  • Simple to use intuitive interface is easy to change between voltage detection ranges and easy to determine the currently active range
  • Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
  • Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed or the closer to the voltage source
  • Built to withstand a 9.9 ft drop
  • Auto power off conserves battery life
  • Screw thread battery cap
  • Lightweight, compact tool with pocket clip provides convenient storage and quick access
  • For cable testing and dual range non-contact detection of the presence of AC voltage from 12 to 1000 VAC or from 70 to 1000 VAC
  • Measures cable length, backlit LCD and hub blink

Specification

Frequency Rating
50 to 500 Hz
Material
Plastic
Maximum Measurable Voltage
70 to 1000 VAC/12 to 1000 VAC
Minimum Order Qty
1
Order Interval
1
Video
http://youtu.be/uJwizMqC_UQ
Type
Dual Range Non-Contact
Application
Security, Entertainment, Communications, Environmental Control and Irrigation Systems
Standard & Approvals
CAT IV 1000 V, CE Certified, ECCN: EAR99, PROP65: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information
Dimensions
6 in L x 1.16 in W x 0.96 in H
Catalog ID
KLENCVT5A
Battery
(2) AAA
