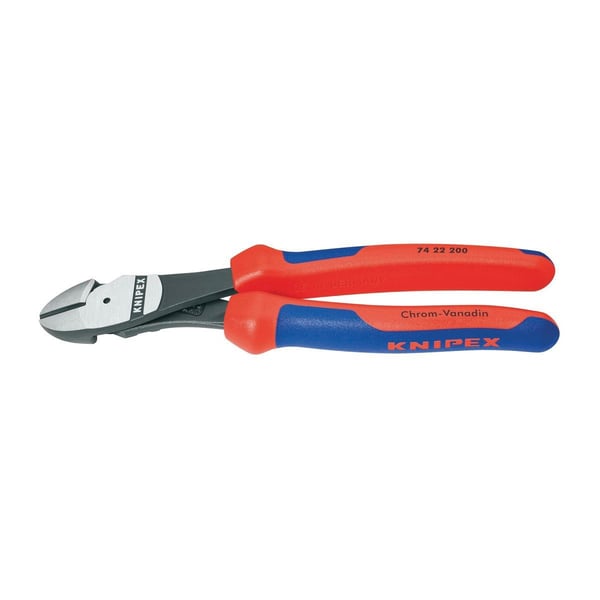

Knipex® 74 22 200 SBA High Leverage Diagonal Cutting Plier, 11/64 in Dia Medium Hard, 1/8 in Dia Hard, 3/32 in Dia Piano Wires Nominal, 7/8 in L x 1-1/8 in W Chrome Vanadium Steel Angled/Oval Jaw, 8 in OAL, Beveled Cut, DIN ISO 5746
Knipex® 74 22 200 SBA High Leverage Diagonal Cutting Plier, 11/64 in Dia Medium Hard, 1/8 in Dia Hard, 3/32 in Dia Piano Wires Nominal, 7/8 in L x 1-1/8 in W Chrome Vanadium Steel Angled/Oval Jaw, 8 in OAL, Beveled Cut, DIN ISO 5746
SKU: KPX7422200SBA
Manufacturer Part Number: 74 22 200 SBA
UPC: 843221000899
Features
- 20% reduction in required force compared to conventional diagonal cutters of the same length
- High leverage means less force required because the rivet is closer to the cutting edge
- High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio
- Precision cutting edges additionally induction hardened (cutting edge hardness approximately 64 HRC), for all sorts of wire including piano wire
- Chrome vanadium heavy duty steel, forged, multi-stage oil hardened
- Integrated forged joint axle for very tough, continuous use
Specification
| Type | High Leverage |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://youtu.be/yQB2SvfoDCU |
| Applicable Materials | Nail, Steel Wire, Spring Steel Wire, Wire Pin and Wire Rope Strand |
| Catalog ID | KPX7422200SBA |
| Color | Blue/Red |
| Cut Type | Beveled |
| Finish | Black Atramentized |
| Handle Type | Comfort Grip/Ergonomic |
| Insulated | No |
| Jaw Material | Chrome Vanadium Steel |
| Jaw Size | 7/8 in L x 1-1/8 in W |
| Jaw Type | Angled/Oval |
| Nominal Capacity | 11/64 in Dia Medium Hard, 1/8 in Dia Hard, 3/32 in Dia Piano Wires |
| Overall Length | 8 in |
| Specifications Met | DIN ISO 5746 |
