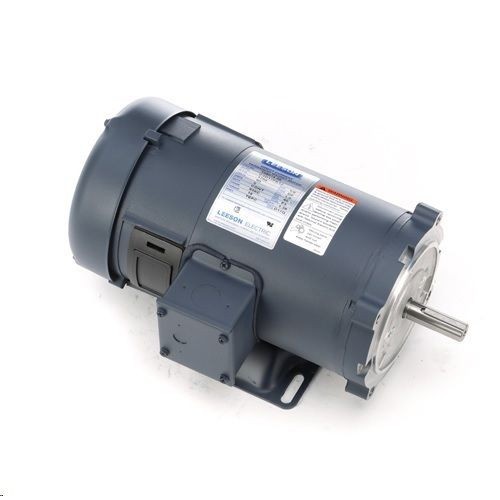

LEESON® 108022.00 C-Face SCR Rated DC Motor With Removable Base, 441 in-lb Torque, 1 hp Power Rating, 90 VDC, 10 A, 56C Frame, 1750 rpm Speed

Selected 108022.00LEESON® 108022.00 C-Face SCR Rated DC Motor With Removable Base, 441 in-lb Torque, 1 hp Power Rating, 90 VDC, 10 A, 56C Frame, 1750 rpm Speed
108022.00LEESON® 108022.00 C-Face SCR Rated DC Motor With Removable Base, 441 in-lb Torque, 1 hp Power Rating, 90 VDC, 10 A, 56C Frame, 1750 rpm Speed

Documents

Short Description

The LEESON® brand spans more than 6000 stock AC and DC motors gearmotors and variable speed control solutions. All are built for rugged commercial and industrial applications. Whether you need thousands of motors for OEM applications or a single replacement motor, count on our twenty three stocking warehouses in the USA to get it there right when you need it. Whether you need a motor that withstands extreme temperatures, utilizes a unique mount or other requirement, we have solutions. Look to LEESON® brand motors for innovative custom solutions, and personalized service through your local sales office.

Features

  • Brush holder design provides easy access to brushes
  • Large oversized brushes assure long brush life
  • Removable bolt on base
  • NEMA C-face design
  • 115 or 230 VAC input power ratings and 90/180 VAC output
  • Capable of dynamic braking for faster stops
  • PWM or SCR type controller rated
  • High starting torque
  • Permanently lubricated sealed bearings
  • LEESON® SCR controls available to power motors
  • Higher horsepower and speed achievable using PWM type DC controls
  • Dynamically balanced armature assemblies

Specification

Frame
56C
Insulation Class
Class F
Material
Copper
Minimum Order Qty
1
Order Interval
1
Bearing Type
Sealed
Catalog ID
LEE108022.00
Dimensions
14.82 in L x 6.5 in W x 6.67 in H
Enclosure Type
Totally Enclosed Fan Cooled
Power Rating
1 hp
Rotation
Reversible
Service Factor
1
Shaft Size
5/8 in
Speed
1750 rpm
Temperature Rating
40 deg C
Torque Rating
441 in-lb
Type
C-Face SCR Rated
Voltage Rating
90 VDC
Application
Pumps, Conveyors, Turntables, Textile Machinery, Treadmills, Reeling Equipment, Sports Equipment and Medical Equipment
Standard & Approvals
CSA Certified, NEMA MG1, UL Listed
Amperage Rating
10 A
