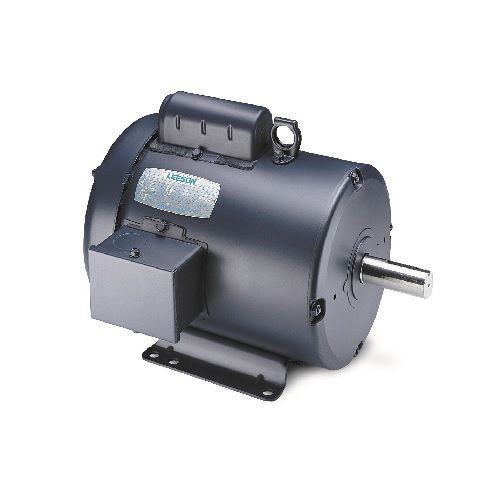

LEESON® 110009.00 6-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.33 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 56 Frame, 1140 rpm Speed, Rigid Base Mount
LEESON® 110009.00 6-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.33 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 56 Frame, 1140 rpm Speed, Rigid Base Mount
SKU: LEE110009.00
Manufacturer Part Number: 110009
UPC: 691720007280
Features
- Durable rolled steel construction
- NEMA design B performance
- Meets or exceed NEMA service factors
- Double shielded ball bearings
- Thermally protected ratings
Specification
| Frame | 56 |
|---|---|
| Frequency Rating | 60 |
| Insulation Class | Class B |
| Material | Rolled Steel |
| Mounting Style | Rigid Base |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 7.8/3.9 A |
| Application Type | Compressor Motors, Fan and Blower Motors, General Purpose AC Motors |
| Bearing Type | Ball |
| Catalog ID | LEE110009.00 |
| Dimensions | 12.48 in L |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Phase | 1 |
| Rotation | Selective CCW |
| Service Factor | 1 |
| Shaft Size | 0.63 in Dia x 1.88 in L |
| Special Features | Capacitor Start Motors |
| Speed | 1140 |
| Temperature Rating | 40 deg C |
| Torque Rating | 36 |
| Type | 6-Pole Continuous Duty |
| Voltage Rating | 115/208 to 230 VAC |
| Application | Pumps, Conveyors, Commercial and Industrial Applications |
| Standard & Approvals | CSA Certified, UL Listed |
| Horsepower | 0.33 hp |
