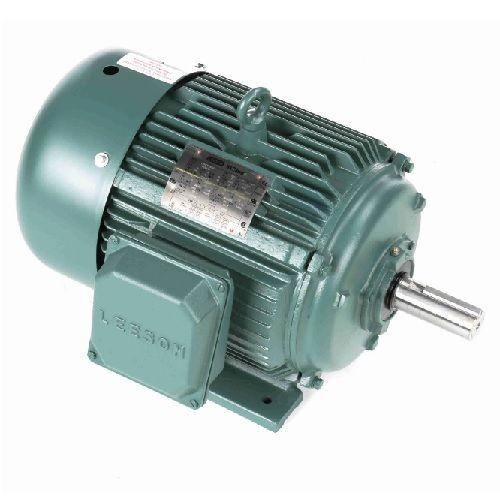

LEESON® 170066.60 Type TF Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 15 hp, 208 to 230/460 VAC, 50/60 Hz, 250 Frame, 1765/1465 rpm Speed, Rigid Mount
LEESON® 170066.60 Type TF Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 15 hp, 208 to 230/460 VAC, 50/60 Hz, 250 Frame, 1765/1465 rpm Speed, Rigid Mount
SKU: LEE170066.60
Manufacturer Part Number: 170066.6
UPC: 691720028117
Features
- Standard, EPACT and premium efficiency Wattsaver® motor
- Shielded ball bearings for direct coupled applications
- Dynamically balanced rotors torques exceed NEMA performance standards
Specification
| Frame | 250 |
|---|---|
| Frequency Rating | 50/60 Hz |
| Insulation Class | Class F |
| Material | Cast Iron |
| Mounting Type | Rigid |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 42/21/34/17 A |
| Application Type | Compressor Motors, Fan & Blower Motors |
| Bearing Type | Ball |
| Catalog ID | LEE170066.60 |
| Dimensions | 23.19 in L |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Rotation | Reversible |
| Service Factor | 1.149 |
| Shaft Size | 1-5/8 in Dia |
| Special Features | 4-Pole, B NEMA Design |
| Speed | 1765/1465 rpm |
| Temperature Rating | 40 deg C |
| Type | Type TF Continuous Duty |
| Voltage Rating | 208 to 230/460 VAC |
| Application | Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and Other Industrial Applications |
| Standard & Approvals | CSA Certified, UL Listed |
| Horsepower | 15 hp |
