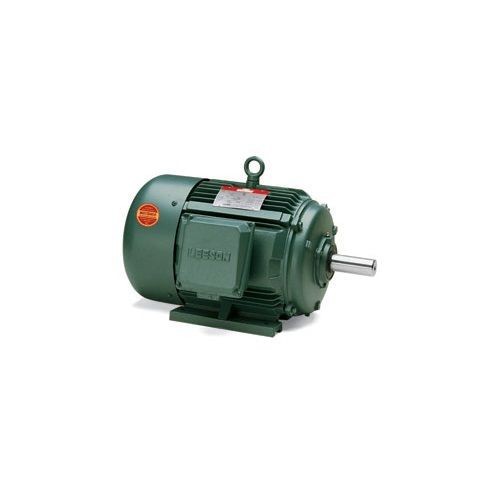

LEESON® 171379.60 Type TF Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 5 hp, 208 to 230/460 VAC, 50/60 Hz, 210 Frame, 1200 rpm Speed, Rigid Mount
LEESON® 171379.60 Type TF Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 5 hp, 208 to 230/460 VAC, 50/60 Hz, 210 Frame, 1200 rpm Speed, Rigid Mount
SKU: LEE171379.60
Manufacturer Part Number: 171379.6
UPC: 691720311783
Features
- Standard, EPACT and premium efficiency Wattsaver® motor
- Shielded ball bearings for direct coupled applications
- Dynamically balanced rotors torques exceed NEMA performance standards
Specification
| Frame | 210 |
|---|---|
| Frequency Rating | 50/60 Hz |
| Insulation Class | Class F |
| Material | Cast Iron |
| Mounting Style | Rigid |
| Number of Speeds | 1 |
| Phase | 3 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Speed | 1200 rpm |
| Temperature Rating | 40 deg C |
| Type | Type TF Continuous Duty |
| Voltage Rating | 208 to 230/460 VAC |
| Application | Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and Other Industrial Applications |
| Standard & Approvals | CSA Certified, UL Listed |
| Dimensions | 19.61 in L x 12.47 in W x 11.77 in H |
| Bearing Type | Ball |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Amperage Rating | 16.2/8.1/12.8/6.4 A |
| Shaft Size | 1-3/8 in Dia |
| Horsepower | 3/5 hp |
