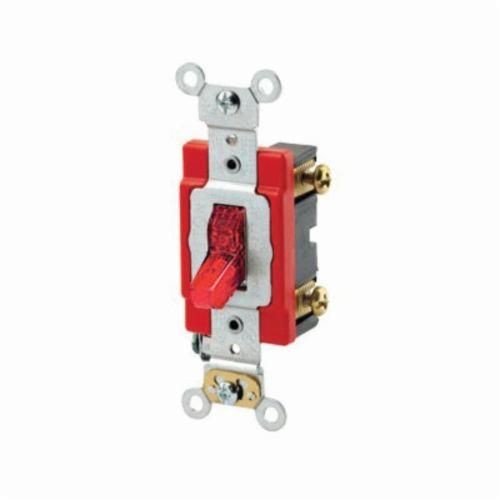

Leviton® 1221-PLR Illuminated ON Self-Grounding AC Quiet Toggle Switch, 120 VAC, 20 A, 1 hp Power Rating, SP Contact
Leviton® 1221-PLR Illuminated ON Self-Grounding AC Quiet Toggle Switch, 120 VAC, 20 A, 1 hp Power Rating, SP Contact
SKU: LEV1221-PLR
Manufacturer Part Number: 1221-PLR
UPC: 078477224427
Documents
Short Description
Features
- Pilot light switches provide top performance in punishing industrial applications
- Pilot light toggle illuminated when load is ON
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- Self-grounding clip (self grounding when used with a grounded metal wallbox)
- AC Quiet switch
- Brass 8-32 terminal screw
- 0.048 in thick galvanized steel strap
- Polycarbonate toggle, thermoplastic base and cover
- Box mounting
- Back and side wire connection
- UL 94-V2 Flammability
Specification
| Material | Thermoplastic |
|---|---|
| Mounting | Surface |
| Number Of Poles | 1 |
| Operating Cycles | 50000 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator | Toggle |
| Amperage Rating | 20 A |
| Catalog ID | LEV1221-PLR |
| Color | Red |
| Dimensions | 46 in H x 1.31 in W x 1.6 in D |
| Environmental Conditions | -40 to 65 deg C |
| Power Rating | 1 hp |
| Terminal Type | Screw |
| Type | Extra Heavy Duty |
| Voltage Rating | 120 VAC |
| Application | Commercial |
| Standard & Approvals | ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NEMA (WD-1 and WD-6), NOM Certified (057), RoHS Compliant, UL Fed Spec WS896E (File E7458), UL 20 Listed |
