Leviton® 1223-2 3-Way Self-Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA Power Rating

Selected 1223-2WLeviton® 1223-2 3-Way Self-Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA Power Rating

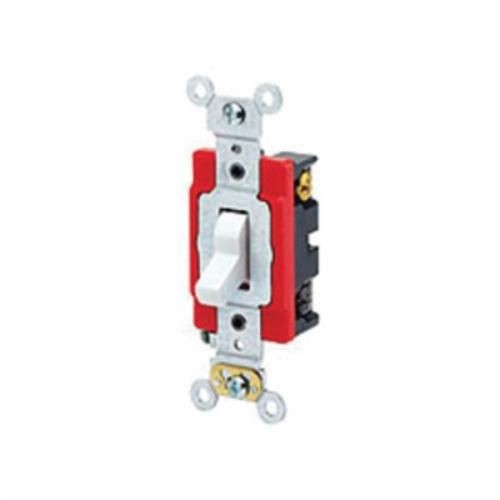

1223-2WLeviton® 1223-2 3-Way Self-Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA Power Rating

Documents

Short Description

Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

Features

  • Heavy gauge copper alloy brush arm for superior performance
  • Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
  • Fully enclosed switch mechanism in rugged housing for strength, track and arc resistance
  • Self-grounding clip (self grounding when used with a grounded metal wall box)

Specification

Material
Thermoplastic
Mounting
Surface
Operating Cycles
50000
Terminal Type
Back/Side Wired
Type
3-Way Extra Heavy Duty
Voltage Rating
120/277 VAC
Application
Commercial Applications
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NOM (057), UL Fed Spec WS896E (File E7458), UL 20 Listed, UL94-V2 Flammability Rated
Amperage Rating
20 A
Dimensions
46 in H x 1.31 in W x 13 in D
Actuator
Toggle
Color
Brown
Contact Rating
1 hp at 120 VAC/2 hp at 240 VAC
Enclosure
NEMA WD-1/WD-6
Environmental Conditions
-40 to 65 deg C Operating Temperature
