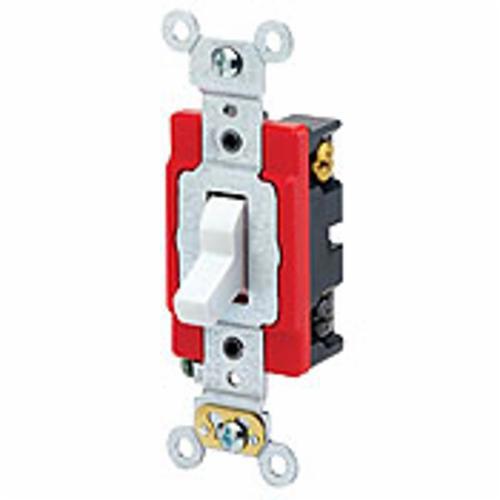

Leviton® 1224-2 4-Way Self-Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA Power Rating

Selected 1224-2ELeviton® 1224-2 4-Way Self-Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA Power Rating
1224-2ELeviton® 1224-2 4-Way Self-Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA Power Rating

Documents

Short Description

Levitons Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

Features

  • Heavy gauge copper alloy brush arm for superior performance
  • Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
  • Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
  • Self-grounding clip (self grounding when used with a grounded metal wallbox)
  • Wire lead switches also available for fast and easy installation
  • AC Quiet switch
  • Brass 8-32 terminal screw
  • 0.048 in thick galvanized steel strap
  • Polycarbonate toggle, thermoplastic base and cover
  • 1 hp at 120 VAC, 2 hp at 240 VAC
  • Box mounting
  • Back and side wire connection
  • UL 94-V2 Flammability

Specification

Material
Thermoplastic
Mounting
Surface
Operating Cycles
50000
Minimum Order Qty
1
Order Interval
1
Actuator
Toggle
Amperage Rating
20 A
Catalog ID
LEV1224-2
Color
Brown
Dimensions
46 in H x 1.31 in W x 13 in D
Environmental Conditions
-40 to 65 deg C
Power Rating
1 hp/2 hp
Terminal Type
Screw
Type
4-Way Extra Heavy Duty
Voltage Rating
120/277 VAC
Application
Commercial
Standard & Approvals
ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NEMA (WD-1 and WD-6), NOM Certified (057), RoHS Compliant, UL Fed Spec WS896E (File E7458), UL 20 Listed
