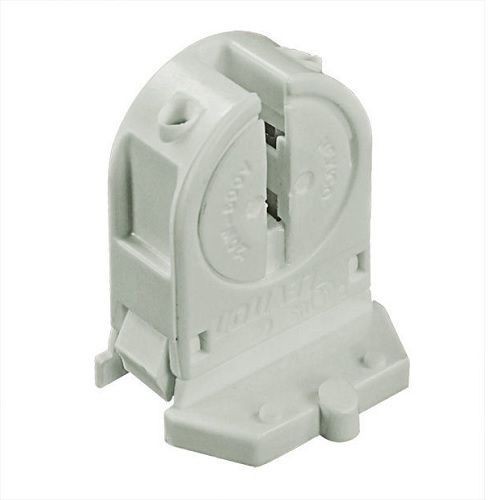

Leviton® 13654-SWP Standard Lampholder, 120 W Lamp, 600 VAC, Miniature Bi-Pin Fluorescent Lamp
Leviton® 13654-SWP Standard Lampholder, 120 W Lamp, 600 VAC, Miniature Bi-Pin Fluorescent Lamp
SKU: LEV13654-SWP
Manufacturer Part Number: 13654-SWP
UPC: 078477164846
Documents
Features
- Miniature bi-pin fluorescent lampholders are dedicated for T5 lamps with a slender 5/8 in diameter
- User friendly benefits include snap-in or slide on mounting options and a 4-position, positive stop lamp-lock socket that makes it easy to relamp in service
Specification
| Lamp Base | Miniature Bi-Pin |
|---|---|
| Lamp Type | Fluorescent |
| Lamp Wattage | 120 W |
| Material | Thermoplastic |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | White |
| Voltage Rating | 600 VAC |
| Application | Commercial |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL File No. E-5833, CSA File No. LR-1863, NOM 057 |
| Type | Low Profile Non-Shunted |
| Dimensions | 1.11 in H x 0.75 in W |
| Catalog ID | LEV13654-SWP |
| Mounting Type | Snap-In/Slide-On |
| Terminal Type | Push-in |
| Includes | Panel Locator Post and Lamp Lock |
