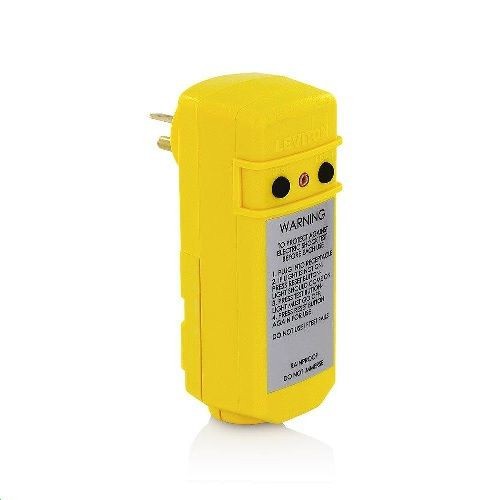

Leviton® 16794 Compact Manual Reset Portable Right Angled GFCI Plug With Green LED Indicator, Black Test, Reset Buttons, 120 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Selected Leviton® 16794 Compact Manual Reset Portable Right Angled GFCI Plug With Green LED Indicator, Black Test, Reset Buttons, 120 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Leviton® 16794 Compact Manual Reset Portable Right Angled GFCI Plug With Green LED Indicator, Black Test, Reset Buttons, 120 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Short Description

Leviton® automatic and manual reset GFCI devices are now sleeker and more rugged than ever And, while these devices are fully OSHA compliant for use on job sites, they are also perfect for use in a variety of temporary power applications, such as recreation vehicles, marine vehicles, portable pools, portable generators, submersible pumps, vending machines and more.

Features

  • Rainproof design, outdoor rated GFCI module with load side wiring chamber
  • Fully complies with NEC and OSHA regulations for construction sites
  • Auto reset models automatically restore power to connected equipment when plugged-in or after power interruption and are perfect for use in hard-to-access locations
  • Manual reset models require manual actuation to restore power to the connected equipment and provide an extra level of safety
  • Power indicator lamp goes OFF if GFCI trips, power is interrupted or GFCI is unplugged
  • Open neutral protection immediately trips the GFCI if the neutral conductor on the line side is opened, eliminating the possibility of the load side of the GFCI having a live hot leg
  • For easy identification, the GFCI housings for auto reset devices are black and manual reset devices are yellow
  • The body of the plug is made of ultrasonically welded polycarbonate material for long service life and offers excellent resistance to harsh weather
  • The contacts are made of brass material for reliable operation
  • It can accommodate 3-wire flexible cord of size 18 to 12 AWG
  • It has terminal chamber that is sealed with silicon/foam rubber gaskets for superior protection against moisture
  • Maximum 30 deg C after 50 cycles overload at 150% rated current temperature rise
  • 5 mA +/-1 mA trip level, brass-hot, green ground, silver neutral, accepts 12/3 AWG through 18/3 AWG types SJ and ST cords, polycarbonate body, brass blades and contacts
  • Ground pin down, screw terminals and built-in strain relief

Specification

Frequency Rating
60 Hz
Material
Polycarbonate
NEMA Rating
NEMA 5-15
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Catalog ID
LEV16794
Color
Yellow
Cord Diameter
0.33 to 0.597 in
Dimensions
4.482 in L x 1.675 in W x 1.729 in D
Temperature Rating
-35 to 66 deg C
Terminal Type
Screw
Type
Compact Manual Reset Portable Right Angled
Voltage Rating
120 VAC
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, ANSI C-73, NOM 057, UL File No. 943 Class A/498 File No. E48380, CSA C22.2 42/144 File No. LR57811, UL94 V-2 Flammability Rating
Horsepower
0.75 hp
