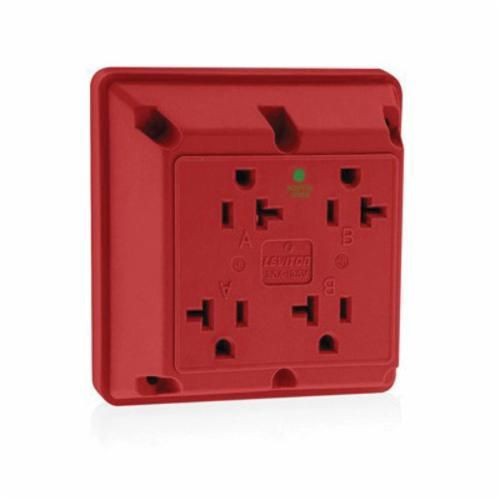

Leviton® 21254-HR 1-Phase 4-in-1 Extra Heavy Duty Grounding Straight Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Red
Leviton® 21254-HR 1-Phase 4-in-1 Extra Heavy Duty Grounding Straight Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU: LEV21254-HR
Manufacturer Part Number: 21254-HR
UPC: 078477830840
Documents
Short Description
Features
- Terminal wiring screws fit inside a standard single gang wall box; adapter plate not required
- Impact resistant nylon cover and base for strength and resistance to chemicals and corrosives
- Easy-to-read voltage and amperage rating molded onto smooth face, easy-to clean surface
- Extra heavy-duty, T-type triple-wipe bronze contacts for maximum performance
- Ground holes configured up or down to be outside the device, accommodating up to 4 fed spec size straight or angle plugs
- No 8 terminal screws accept up to no 12 solid or stranded copper wire
- Termination anchor holes for easy conductor wiring
- Exclusive shield-wall design protects ground connection from contact with live circuit conductors
- "A" and "B" molded on face and back for easy identification of receptacle pairs for split-circuit conversion
- Convenient built-in strip gauge
Specification
| Grade | Hospital/Industrial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Screw |
| Type | Extra Heavy Duty Grounding |
| Voltage Rating | 250 VAC |
| Application | Commercial Applications |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, ANSI (C-73), CSA C22.2 NO 42 (File 152105), NOM (057), UL Listed 498 (File E13399), UL Listed 498HG (File E13399), UL 94 Flammability Rated |
| Amperage Rating | 20 A |
| Dimensions | 4.5 in L x 4.5 in W x 1.15 in D |
| Color | Red |
| Enclosure | NEMA WD-1/WD-6 |
| Horsepower | 1 hp |
