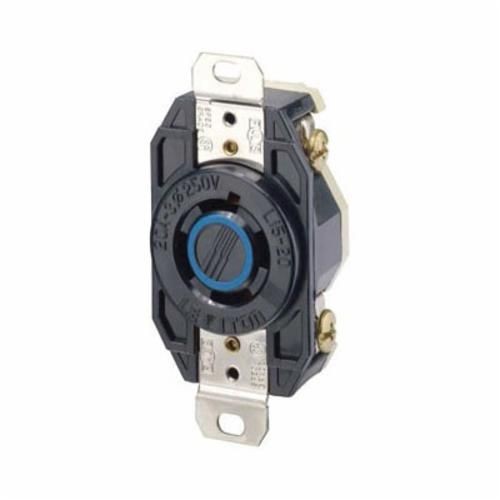

Leviton® V-0-Max™ 2420 3-Phase Y Grounding Locking Receptacle, 250 VAC, 20 A, 3 Poles, 4 Wires, Black

Selected 2420Leviton® V-0-Max™ 2420 3-Phase Y Grounding Locking Receptacle, 250 VAC, 20 A, 3 Poles, 4 Wires, Black
2420Leviton® V-0-Max™ 2420 3-Phase Y Grounding Locking Receptacle, 250 VAC, 20 A, 3 Poles, 4 Wires, Black

Documents

Short Description

Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.

Specification

Grade
Commercial
Material
PBT
NEMA Rating
NEMA L15-20R
Number Of Poles
3
Number of Wires
4
Temperature Rating
-40 to 60 deg C
Type
3-Phase Grounding
Voltage Rating
250 VAC
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI C-73, NEMA WD-1, WD-6, NOM 057 Certified, CSA C22.2 No. 42, Federal Specification WC-596, UL 498, File No. E13399
Amperage Rating
20 A
Dimensions
3.63 in H x 1.69 in W x 1.31 in D
Color
Black
Horsepower
3 hp
