Leviton® Black & White® 2511 3-Phase Grounding Cable Mount Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black/White

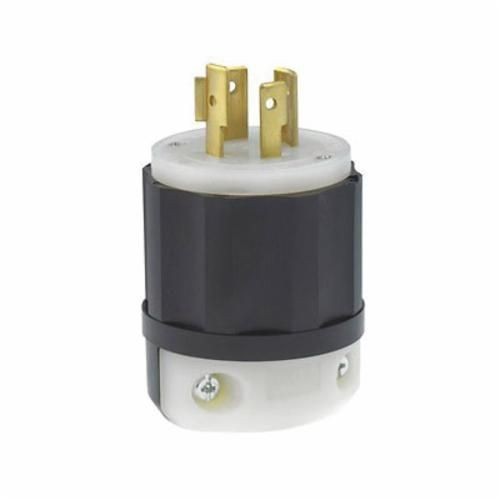

Selected 2451Leviton® Black & White® 2451 3-Phase Non-Grounding Cable Mount Locking Plug, 277/480 VAC, 20 A, 4 Poles, 4 Wires, Black/White
2451Leviton® Black & White® 2451 3-Phase Non-Grounding Cable Mount Locking Plug, 277/480 VAC, 20 A, 4 Poles, 4 Wires, Black/White

Documents

Short Description

Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Specification

Grade
Industrial
Material
Nylon
NEMA Rating
NEMA L21-20P
Number Of Poles
4
Number of Wires
5
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Catalog ID
LEV2511
Color
Black/White
Cord Diameter
0.595 to 0.895
Dimensions
2.08 Dia x 2.47 in L
Temperature Rating
-40 to 60 deg C
Terminal Type
Screw
Type
3-Phase Grounding
Voltage Rating
120/208 VAC
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI C-73 Approved, CSA C22.2 No. 42, File No. LR-406 Certified, NEMA WD-1, WD-6, NOM 057 Certified, Federal Specification WC-596 , File No. E13393, UL 498 , File No. E13393 Listed
Horsepower
2 hp
