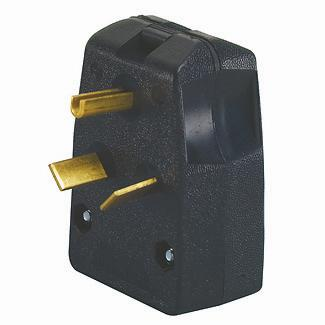

Leviton® 287-E Non-Grounding Straight Blade Angle Plug, 125/250 VAC, 30/50 A, 3 Poles, 3 Wires, Black

Selected 287-TLeviton® 287-E Non-Grounding Straight Blade Angle Plug, 125/250 VAC, 30/50 A, 3 Poles, 3 Wires, Black
287-TLeviton® 287-E Non-Grounding Straight Blade Angle Plug, 125/250 VAC, 30/50 A, 3 Poles, 3 Wires, Black

Documents

Short Description

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant and they're ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Specification

Grade
Commercial
Material
Thermoplastic
NEMA Rating
10-30P/10-50P
Number Of Poles
3
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Color
Black
Voltage Rating
125/250 VAC
Standard & Approvals
ANSI C-73, CSA C22.2 No. 42 File LR-406, NOM 057, UL 498 File No. E13393/94
Dimensions
3.49 in L x 2.56 in W
Cord Diameter
0.687 to 1.05 in
Catalog ID
LEV287-E
Amperage Rating
30/50 A
Type
Non-Grounding
Terminal Type
Backed-Out/Deep Slotted
Temperature Rating
-40 to 60 deg F
Enclosure
NEMA WD-6
