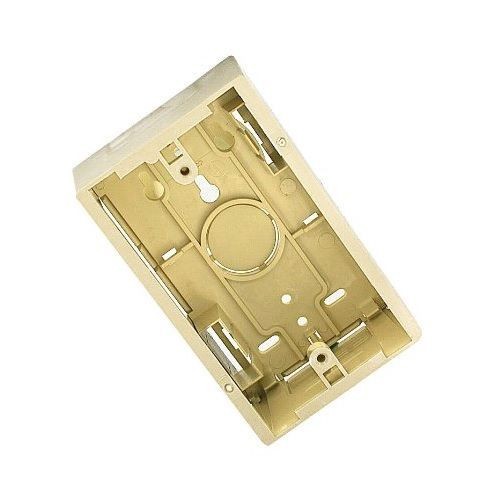

Leviton® 42777-1IA 1-Gang Back Box, Surface Mount, Plastic, Ivory

Selected Leviton® 42777-1IA 1-Gang Back Box, Surface Mount, Plastic, Ivory
Leviton® 42777-1IA 1-Gang Back Box, Surface Mount, Plastic, Ivory

Documents

Short Description

Surface-mount back boxes shall accept NEMA compliant flush-mount plates. Both side and rear cable entry must be provided with rear cable knockout sized to facilitate cable bend-radius. Back boxes shall have removable base and accommodate two sizes of raceway on sides, top, and bottom. Matching shallow and deep versions shall be available. Colors and configurations to be specified per schedule on plan. Back boxes shall be constructed of high-impact, fire-retardant plastic rated UL 94V-0, and be UL Listed and compliant with ANSI/TIA- 568-C.0 specifications.

Features

  • Back boxes have tie wrap anchors at each inside raceway entry point
  • 2-gang back box has four fiber storage tie wrap anchors located on base surface
  • Screws and tape provided for mounting
  • Compatible with all Leviton® multimedia wallplates, including QuickPort® wallplates
  • 2-piece construction
  • Designed with rear and side cable access breakouts
  • Larger breakouts in 1-gang bases accommodate a larger cable bend radius

Specification

Height
4.72 in
Material
Plastic
Mounting Type
Surface
Number of Gangs
1
Minimum Order Qty
1
Order Interval
1
Cable Entry
Knockout
Catalog ID
LEV42777-1IA
Color
Ivory
Depth
1.89
Width
2.96 in
Application
Commercial
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, CSA Certified, UL Listed, TIA\EIA-568-B
Includes
Screws, Adhesive Tape
