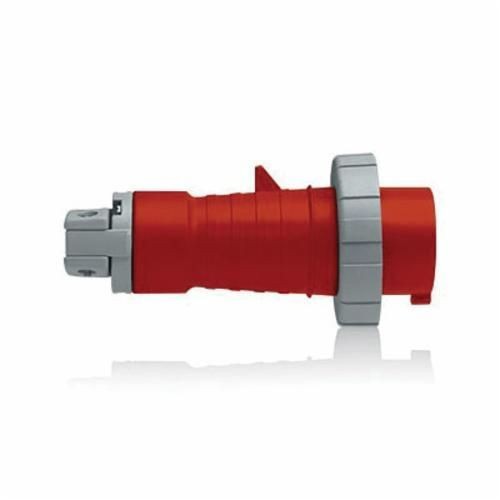

Leviton® 430P7W Watertight Pin and Sleeve Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
Leviton® 430P7W Watertight Pin and Sleeve Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
SKU: LEV430P7W
Manufacturer Part Number: 430P7W
UPC: 078477838167
Documents
Features
- Certified for current interrupting at full rated current
Specification
| Frequency Rating | 50/60 |
|---|---|
| Grade | Industrial |
| Material | Valox® 357 |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Screw |
| Type | Watertight |
| Voltage Rating | 480 VAC |
| Application | Industrial Applications |
| Amperage Rating | 30 A |
| Color | Red |
| Enclosure | IP67/IP69K |
| Dimensions | 3.7 in Dia x 6.85 in L |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, CE 73/23/EEC, 93/68/EEC Marked, CSA C22.2 No. 182.1 Certified, IEC 60309-1, 60309-2 Rated, UL 1682 and 1686 Listed, V-2 per UL94 Flammability Rated |
