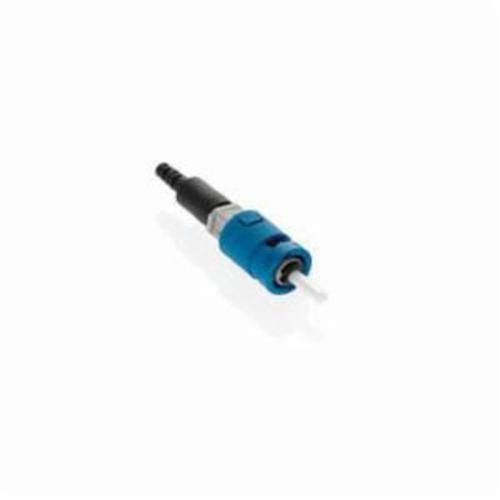

Leviton® FastCAM® 49991-SST Pre-Polished Field Installable Connector, ST Connector, OS2 Single Mode Fiber, Pre-Radiused Zirconia Ferrule

Selected 49991-SSTLeviton® FastCAM® 49991-SST Pre-Polished Field Installable Connector, ST Connector, OS2 Single Mode Fiber, Pre-Radiused Zirconia Ferrule
49991-SSTLeviton® FastCAM® 49991-SST Pre-Polished Field Installable Connector, ST Connector, OS2 Single Mode Fiber, Pre-Radiused Zirconia Ferrule

Documents

Short Description

FastCAM Connectors are pre-polished, field-installable connectors that eliminate the need for hand polishing, bonding, or epoxy in the field. FastCAM connectors are available in LC, SC, or ST, Single-mode or Multimode (standard 50/125um, 62.5/125um, and Laser Optimized 50/125um) configurations terminated on 250 or 900um buffered fiber and/or 2 or 3mm jacketed fiber. LC and SC connectors allow verification of optical continuity, by use of the visual fault locator (VFL). FastCAM Connectors are designed for premise environments, patch panels, and rapid repair/replacement requirements, as well as data centers and applications requiring fast network deployment.

Features

  • Precision mechanical termination, pre-polished
  • Fast and easy to install (less than one minute)
  • No polishing, epoxy curing, consumables
  • No proprietary tools
  • Precision pre-radiused zirconia ferrules
  • Uses proven, molded v-groove technologies
  • -40 to 75 deg C operating temperature
  • -55 dB return loss
  • Allow optical continuity to be verified by use of visual fault locator (VFL)
  • Low insertion loss connection
  • Not recommended for termination in outside plant applications/installations
  • Precision cleavers are required for all FastCAM connectors

Specification

Color
Blue
Connector Type
ST
Fiber Type
OS2 Single Mode
Ferrule Type
Pre-Radiused Zirconia
Standard & Approvals
ANSI (TIA-568-C.3), ANSI (TIA-604-3) Approved
