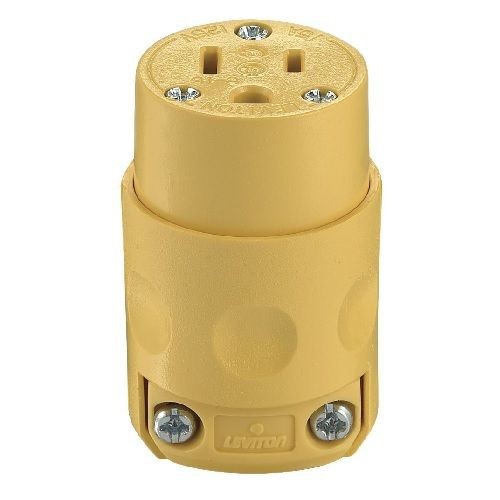

Leviton® 515CV Cable Mount Grounding Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Leviton® 515CV Cable Mount Grounding Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
SKU: LEV515CV
Manufacturer Part Number: 515CV
UPC: 078477841334
Documents
Short Description
Features
- Triple-drive head screws standard, philips, robertson
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Deep-slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with no 18-3 through no 12-3 cords (0.245 to 0.655 in)
- Motor base inlet accepts #10 maximum copper or copper clad wire
- Brass plug blades and connector contacts for maximum conductivity
- Rugged PVC body resists moisture and chemicals
- Unique dimpled body design provides a secure grip
- Speed-thread assembly screws tighten with just a few quick turns
Specification
| Grade | Commercial |
|---|---|
| Material | PVC |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Catalog ID | LEV515CV |
| Color | Yellow |
| Cord Diameter | 0.245 to 0.7 |
| Dimensions | 1.54 in Dia x 2.61 in H |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Screw |
| Type | Grounding |
| Voltage Rating | 125 VAC |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, ANSI (C-73), CSA C22.2 No. 42 File No. LR-406 Certified, NEMA WD-6, NOM (057), UL 498 File No. E13393 Listed, UL 94-V2 Flammabilty Rated |
