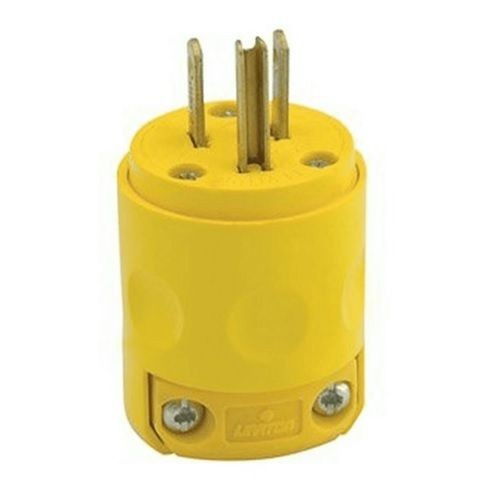

Leviton® 515PV Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Leviton® 515PV Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
SKU: LEV515PV
Manufacturer Part Number: 515PV
UPC: 078477841242
Documents
Features
- Triple drive standard head screws
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
- Motor base inlet accepts #10 AWG maximum copper or copper clad wire
- Grounding, rugged plc. body resist moisture and chemicals suited for outdoor cords
- Zinc plated steel assembly screws and solid brass blade and contacts
Specification
| Material | PVC |
|---|---|
| NEMA Rating | NEMA 5-15P |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Color | Yellow |
| Temperature Rating | -40 to 60 deg C |
| Voltage Rating | 125 VAC |
| Application | Commercial Applications |
| Type | Cable Mount Grounding |
| Dimensions | 1.54 in Dia x 2.77 in H |
| Cord Diameter | 0.245 to 0.7 |
| Catalog ID | LEV515PV |
| Grade | Residential |
| Standard & Approvals | RoHS Compliant, ANSI C-73, NOM 057, CSA C22.2 No. 42, CSA File No. LR406, UL 498 File No. E13393 |
