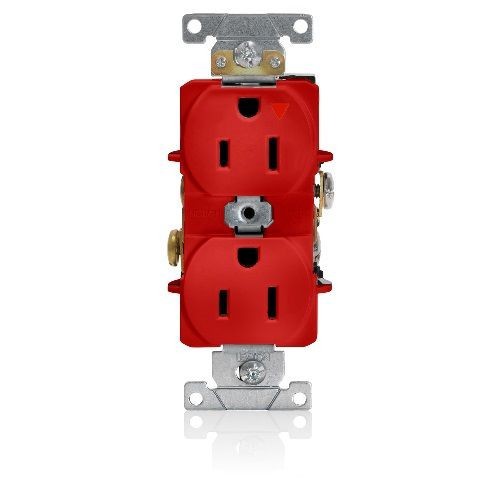

Leviton® 5262-IGR Duplex Heavy Duty Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Red

Selected Leviton® 5262-IGR Duplex Heavy Duty Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Red
Leviton® 5262-IGR Duplex Heavy Duty Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Red

Documents

Short Description

Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade, etc., these industrial grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Features

  • Flush mounting
  • Isolated grounding, 8-hole feed-through
  • 14 to 10 AWG wire terminal
  • 2000 VAC minimum dielectric strength
  • Maximum 30 deg C after 250 cycles OL at 200% rated current
  • 1-phase

Specification

Grade
Industrial/Specification
Material
Thermoplastic
NEMA Rating
NEMA 5-15R
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Color
Red
Temperature Rating
-40 to 60 deg C
Terminal Type
Back and Side Wired
Voltage Rating
125 VAC
Dimensions
46 in H x 1.33 in W x 1.12 in D
Catalog ID
LEV5262-IGR
Video
https://www.youtube.com/watch?v=pJiYtQ2rg-A
Standard & Approvals
ANSI C-73, UL Federal Specification WC-596 File No. E13399, UL 498 File No. E13399, CSA C22.2 No. 42 File No. 152105, NOM 057 Approved, UL 94-V-2 Flammability Rated, NEMA WD-1, WD-6, RoHS Compliant
Type
Duplex Heavy Duty
