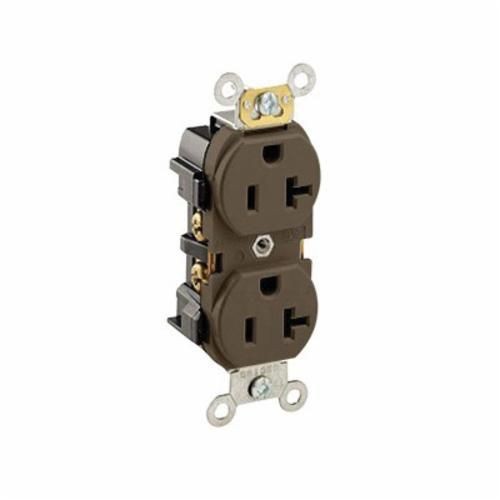

Leviton® 5352 Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown

Selected 5352Leviton® 5352 Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
5352Leviton® 5352 Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown

Documents

Short Description

Leviton® line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Features

  • Impact-resistant thermoplastic nylon cover and body
  • Smooth face does not collect dirt
  • Four corner latches securely fasten face
  • Large, triple-wipe, brass "T" contacts for superior contact and conductivity
  • Back and side wiring options
  • Brass terminal screws to reduce conductor oxidation
  • Break-off tabs for easy two-circuit conversion
  • Apron barrier to prevent accidental contact between terminal screw heads and metal box
  • Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
  • Wire lead receptacles for fast and easy installation

Specification

Grade
Industrial
Material
Thermoplastic
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
Terminal Type
Back/Side Wired
Type
Heavy Duty
Voltage Rating
125 VAC
Application
Commercial Applications
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI (C-73), CSA C22.2 NO 42 (File 152105), NOM (057), UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399), UL 94 Flammability Rated
Amperage Rating
20 A
Dimensions
4.06 in H x 1.55 in W x 1.12 in D
Color
Brown
Enclosure
NEMA WD-1/WD-6
Horsepower
1 hp
