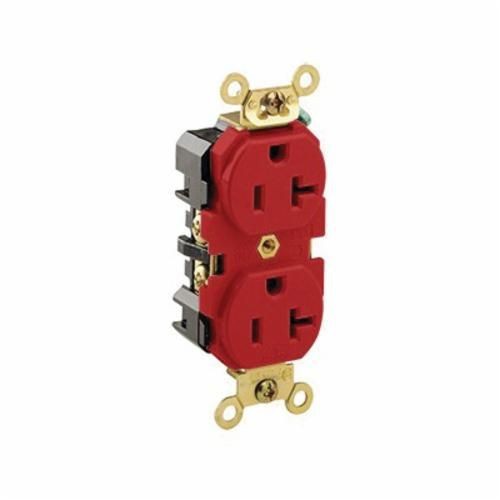

Leviton® 5362-R 1-Phase Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Leviton® 5362-R 1-Phase Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU: LEV5362-R
Manufacturer Part Number: 5362-R
UPC: 078477139561
Documents
Short Description
Features
- Impact-resistant thermoplastic nylon cover and body
- Smooth face does not collect dirt
- Four corner latches securely fasten face
- Large, triple-wipe, brass "T" contacts for superior contact and conductivity
- Back and side wiring options
- Brass terminal screws to reduce conductor oxidation
- Break-off tabs for easy two-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
- Wire lead receptacles for fast and easy installation
Specification
| Grade | Industrial |
|---|---|
| Material | Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | LEV5362-R |
| Color | Red |
| Dimensions | 46 in H x 1.53 in W x 1.11 in D |
| Enclosure | NEMA WD-1/WD-6 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Back/Side Wired |
| Type | Extra Heavy Duty |
| Voltage Rating | 125 VAC |
| Application | Commercial Applications |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, ANSI (C-73), CSA C22.2 NO 42 (File 152105), NOM (057), UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399), UL 94 Flammability Rated |
| Horsepower | 1 hp |
