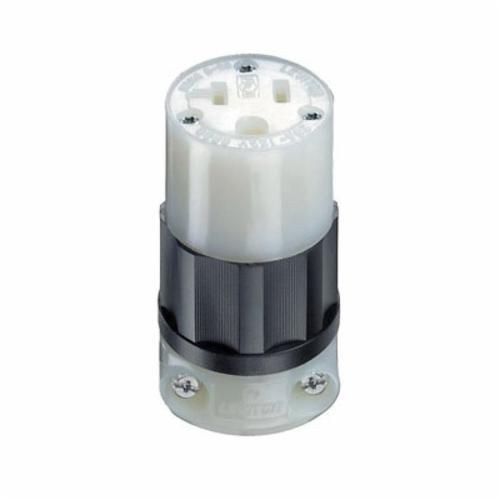

Leviton® Black & White® 5369-C Cable Mount Grounding Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White

Selected 5369-CLeviton® Black & White® 5369-C Cable Mount Grounding Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White
5369-CLeviton® Black & White® 5369-C Cable Mount Grounding Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White

Documents

Short Description

The Leviton® line of straight blade plugs and connectors includes Black & White® industrial grade devices that resist impact, corrosion and chemicals and withstand punishing applications. Their innovative interlocking design, rugged nylon flanged inlets and outlets, integrated inlets and outlets with weather-resistant covers, and hospital grade devices that meet the highest standards for dependable, long-term performance. Superior design, construction and ergonomic details provide long-lasting performance and reliability in the demanding healthcare environment.

Features

  • Rugged nylon construction resists impact, sunlight, chemicals and rough use
  • All contacts are solid one-piece brass for better conductivity
  • Triple-wipe, heavy duty power contacts set in deep pockets to resist damage
  • Captive, color-coded brass no 8 terminal screws
  • Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket SVT 18-3 to SO 14-3 with strain relief insert, up to ST 10-3 when strain relief insert is removed
  • Power indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years

Specification

Grade
Industrial
Material
Nylon
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
Terminal Type
Screw
Type
Grounding
Voltage Rating
125 VAC
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI (C-73), CSA C22.2 No. 42 File No. LR-406 Certified, NEMA WD-1/WD-6, NOM (057), UL 498 File No. E13393 Listed, UL Fed Spec WC-596 File No. E13393, UL 94-V2 Flammability Rated
Amperage Rating
20 A
Dimensions
1.49 in Dia x 2.76 in H
Color
Black/White
Cord Diameter
0.25 to 0.685
