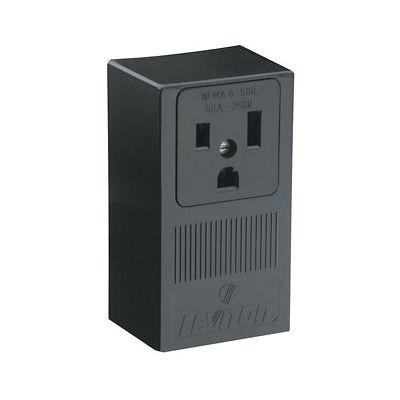

Leviton® 5378-P00 Grounding Single Straight Blade Receptacle, 250 VAC, 50 A, 2 Poles, 3 Wires, Black

Selected 5378-P00Leviton® 5378-P00 Grounding Single Straight Blade Receptacle, 250 VAC, 50 A, 2 Poles, 3 Wires, Black
5378-P00Leviton® 5378-P00 Grounding Single Straight Blade Receptacle, 250 VAC, 50 A, 2 Poles, 3 Wires, Black

Documents

Short Description

Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these industrial grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Specification

Grade
Industrial
Material
Thermoplastic
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
50 A
Color
Black
Voltage Rating
250 VAC
Horsepower
3 hp
Standard & Approvals
UL 498 File No. E13399, CSA C22.2 No. 42 File No. 152105, ANSI C-73, NOM 057, NEMA WD-6, UL 94 V-2 Flammability Rating
Application
For all wallplates with 2.15 in Dia center hole
Type
Grounding Single
Terminal Type
Side Wired
Temperature Rating
-40 to 60 deg C
Dimensions
4.82 in H x 2.68 in W x 2.04 in D
Catalog ID
LEV5378-P00
NEMA Rating
NEMA 6-50R
