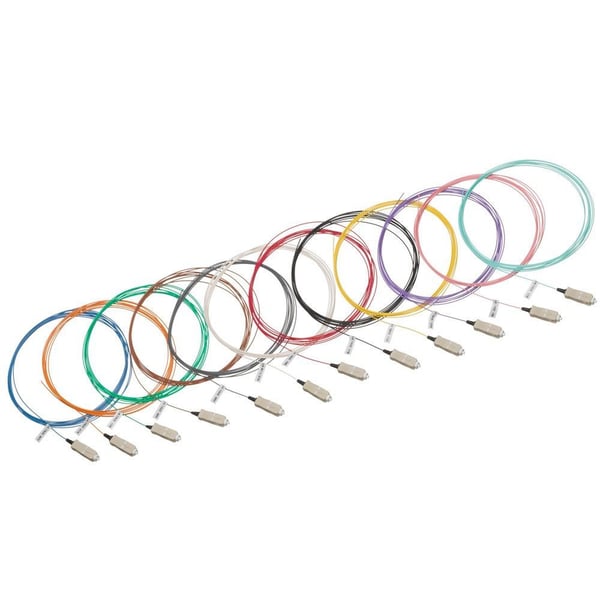

Leviton® 54PLC-KIT Economy OM3 Multi-Mode Fiber Optic Pigtail Kit, 12 Fiber, 50 um Core, 3 m L, Aqua/Black/Blue/Brown/Green/Orange/Purple/Red/Rose/Slate/White/Yellow
Leviton® 54PLC-KIT Economy OM3 Multi-Mode Fiber Optic Pigtail Kit, 12 Fiber, 50 um Core, 3 m L, Aqua/Black/Blue/Brown/Green/Orange/Purple/Red/Rose/Slate/White/Yellow
SKU: LEV54PLC-KIT
Manufacturer Part Number: 54PLC-KIT
UPC: 078477631959
Documents
Features
- Standard 900 um buffered fiber cable in 3 m L, color white
- All assemblies are 100% optically tested
- All pigtails are serialized for traceability
- Support equipment for complete network solutions
- Pigtails in kit are individually colored to easily match color coded (900 or 250 um) fiber cable that will be spliced
Specification
| Length | 3 m |
|---|---|
| Series | Economy |
| Temperature Rating | -40 to 75 deg C |
| Type | OM3 Multi-Mode |
| Application | For used to support fusion or mechanical splicing for fiber cabling systems |
| Standard & Approvals | ANSI/TIA-598-D-1, ANSI/TIA-568.3-D, TIA-598-A, GR 1435 |
| Attenuation Rating | 0.35 dB Max Insertion Loss, >25 dB Return Loss |
| Clad Dimension | 125 um |
| Color | Aqua/Black/Blue/Brown/Green/Orange/Purple/Red/Rose/Slate/White/Yellow |
| Connector Type | LC |
| Core Dimension | 50 um |
| Fiber Count | 12 |
| Includes | (12) Individually Color Coded Fiber Optic Pigtails |
