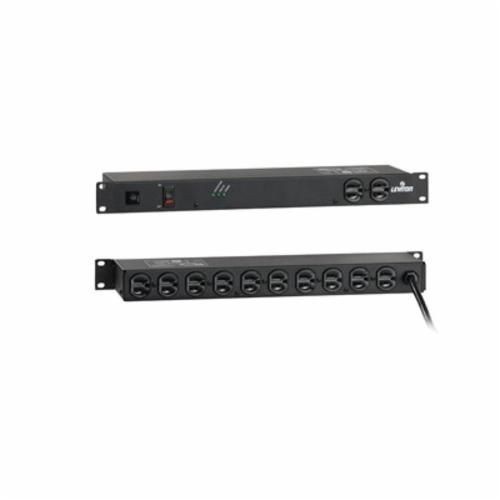

Leviton® 5500-190 Straight Blade Plug Surge Protected Power Distribution Unit, 120 VAC, 15 A, 12 Outlets, 12 ft L Cord, Rack Mount

Selected 5500-190Leviton® 5500-190 Straight Blade Plug Surge Protected Power Distribution Unit, 120 VAC, 15 A, 12 Outlets, 12 ft L Cord, Rack Mount
5500-190Leviton® 5500-190 Straight Blade Plug Surge Protected Power Distribution Unit, 120 VAC, 15 A, 12 Outlets, 12 ft L Cord, Rack Mount

Documents

Short Description

Mounts on 19 in equipment racks to provide point-of-use surge suppression for electronic equipment. Clamping profile tightly tracks AC sine wave. Provides 6 protected duplex receptacles 5 in back, 1 in front. Available with easy-access ON/OFF rocker-style switch, or without switch to avoid unnecessary equipment switching. Resettable circuit breaker protects against overloading and power supply failure. Provides 12 ft line cord with either NEMA 5-15P, L5-15P, 5-20P or L5-20P plug.

Features

  • Resettable circuit breaker protects against current overloading
  • (12) 10 in back/2 in front receptacles
  • LED diagnostics for power, protection and outlet polarity/ground status

Specification

Frequency Rating
50/60
Housing Material
Painted Steel
Mounting
Rack
Number of Outlets
12
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Catalog ID
LEV5500-190
Cord Length
12
Dimensions
19 in L x 4.55 in W x 1.75 in H
Plug Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Type
Horizontal Surge Protection
Voltage Rating
120 VAC
Application
For rack-mounted electronic equipment
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI/UL 1449 Approved, UL 1363, E118936/E317603 Listed
