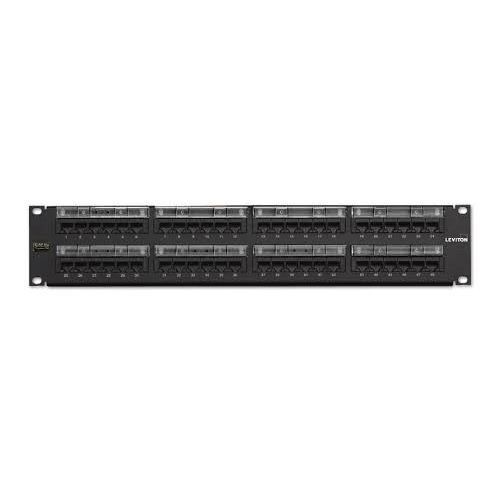

Leviton® GigaMax® 5G596-U48 2-RU Flat Patch Panel With Centralized Labeling Holder, 48 Ports, CAT 5e, 26 to 22 AWG Terminal, Plastic/Steel

Selected Leviton® GigaMax® 5G596-U48 2-RU Flat Patch Panel With Centralized Labeling Holder, 48 Ports, CAT 5e, 26 to 22 AWG Terminal, Plastic/Steel
Leviton® GigaMax® 5G596-U48 2-RU Flat Patch Panel With Centralized Labeling Holder, 48 Ports, CAT 5e, 26 to 22 AWG Terminal, Plastic/Steel

Documents

Short Description

Leviton® Category 5e channel and component rated solution. Includes connectors, patch cords and a variety of universal and pre-configured panels. Exceeds TIA specifications for channel-and component-rated Category 5e systems.

Features

  • Patented retention force technology protects tines from damage from 4 or 6 pin plugs
  • Craft friendly installation
  • Universal T568A/T568B wiring cards for 110 style IDC terminations
  • Color coded front labeling for easy port identification
  • Capable of multiple reterminations
  • Panel available with patented magnifying lens label holder for easy reading
  • Centralized labeling promotes greater visibility of labels when patch cords are routed into horizontal cable management above and below the patch panel

Specification

Material
Plastic/14 ga Steel
Mounting Type
Rack
Number of Ports
48
Minimum Order Qty
1
Order Interval
1
Color
Black
Terminal Type
110-IDC
Type
2-RU Flat
Wiring Code
T568A/T568B
Includes
Rear Cable Management Bar
Category Type
CAT 5E
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, ANSI/TIA-568-C.2, ISO/IEC 11801, ANSI/TIA-1096-A, cULus Listed, IEEE 802.3at (Type 1), IEEE 802.3at (Type 2), IEEE 802.3bt/D1.7 (Type 3)
Application
High Speed Data Applications
Terminal Size
26 to 22
Series
5G596
Catalog ID
LEV5G596-U48
