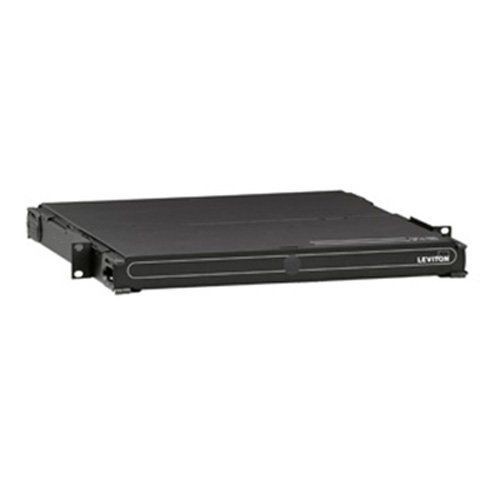

Leviton® OPT-X® 5R1UM-F03 1000i SDX 1-RU Empty Distribution and Splice Enclosure, Steel/Santoprene

Selected Leviton® OPT-X® 5R1UM-F03 1000i SDX 1-RU Empty Distribution and Splice Enclosure, Steel/Santoprene
Leviton® OPT-X® 5R1UM-F03 1000i SDX 1-RU Empty Distribution and Splice Enclosure, Steel/Santoprene

Documents

Short Description

1000i SDX rack mount enclosures allow for inter-connect or cross connect between backbone cable and active equipment, for up to 72 LC fibers per RU, in a frame or cabinet setting. The enclosures' features and design allow for easy field termination of connectors, splicing or pre-terminated plug-n-play solutions.

Features

  • 15 in depth for high density fiber termination and/or splicing
  • Stackable and adjustable fiber rings simplify cable organization
  • Front saddles pivot for improved patch cord routing
  • Removable front and rear covers offer better access to the interior of the enclosure
  • Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable and minimizes dust build-up
  • Constructed of 16 ga steel, powder coated black
  • Empty, accepts up to (3) OPT-X® adapter plates or (3) OPT-X® P-N-P modules and accepts up to (3) splice trays

Specification

Material
Steel
Mounting Type
Rack
Minimum Order Qty
1
Order Interval
1
Catalog ID
LEV5R1UM-F03
Color
Black
Size
1.72 in H x 19 in W x 15.78 in D
Application
Data Centers, Equipment Rooms and Telecommunication Rooms
Standard & Approvals
ARRA, Buy American Act Compliant, TIA-568-C.3
