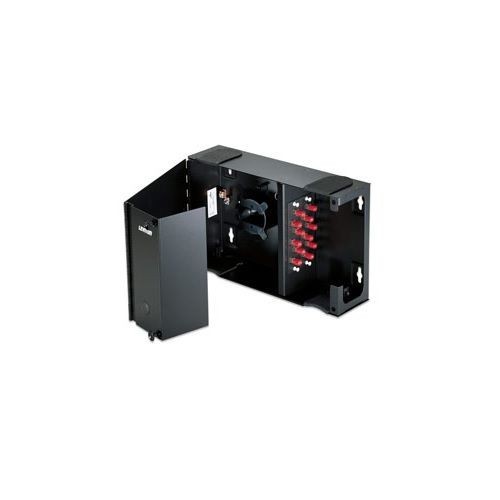

Leviton® OPT-X® 5W120-N SDX Empty Small Size Enclosure With Split Metal Door and Lock/Key, 13 in W x 3-1/2 in D, 16 ga Steel/Ensolite/Plastic
Leviton® OPT-X® 5W120-N SDX Empty Small Size Enclosure With Split Metal Door and Lock/Key, 13 in W x 3-1/2 in D, 16 ga Steel/Ensolite/Plastic
SKU: LEV5W120-N
Manufacturer Part Number: 5W120-N
UPC: 078477880890
Documents
Short Description
Features
- Empty with split metal door, (1) lock/key, 48 fibers (using lc), accepts (2) adapter plates, (2) MTP modules
- Self-healing grommet material protects cable and minimizes dust buildup
- Adjustable fiber management rings easily attach to mounting studs
- Ground terminal lug provides grounding option or cable strain relief
- Cutout on side of enclosure allows access to adapter bulkhead when doors are open
- Door options split with single lock on service side (optional lock available to install on customer side), solid with or without single lock on customer side
- Constructed of 16-gauge steel, powder-coated black
- Large enclosure includes eight plastic blank adapter plates to inexpensively fill up any unused areas - an economical and attractive way to leave room for expanding the enclosure
- Fiber management rings self-extinguishing plastic
- Ensolite™ grommet material
Specification
| Length | 8 in |
|---|---|
| Material | Steel |
| Mounting Type | Wall |
| Type | Small |
| Width | 13 in |
| Color | Black |
| Depth | 3-1/2 in |
| Finish | Powder Coated |
| Includes | Hardware Kit With Hook and Loop Ties, Screws, Caution Label and Cable Ties |
| Standard & Approvals | ANSI TIA\EIA-568-B, UL Listed, ISO 9001 Registered, RoHS Complaint |
| Application | For fiber applications requiring patching, cross-connect, and/or splicing of single-mode or multimode fibers while utilizing a minimum of space |
| Series | Opt-X® SDX |
