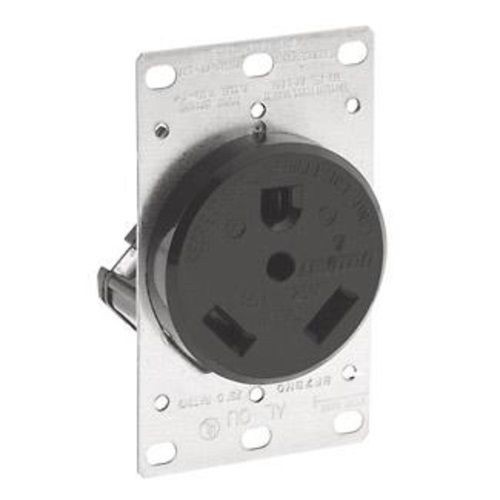

Leviton® 7313-S00 Straight Blade Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Black

Selected 7313-S00Leviton® 7313-S00 Straight Blade Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
7313-S00Leviton® 7313-S00 Straight Blade Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Black

Documents

Short Description

Built of durable thermoplastic, Leviton® power receptacles - come equipped with heavy gauge, double-wire copper alloy contacts. Flush mount receptacles fit Leviton® wide range of 2.15"- diameter wallplates and mounting hardware is included. For use in recreational Vehicles.

Specification

Grade
Industrial
Material
Thermoplastic
NEMA Rating
NEMA TT-30R
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Catalog ID
LEV7313-S00
Color
Black
Dimensions
2.42 in W x 1.57 in D x 3.75 in H
Temperature Rating
-40 to 60 deg C
Terminal Type
Side Wired
Voltage Rating
125 VAC
Application
For recreational vehicles
Standard & Approvals
ARRA and Buy American Act Compliant, ANSI C73, CSA 22.2 No. 42, C22.2 No. 14, C22.2 No. 65, File No. E13399, NOM-ANCE Certified, NEMA WD-6, UL 498, 486E
Horsepower
2 hp
