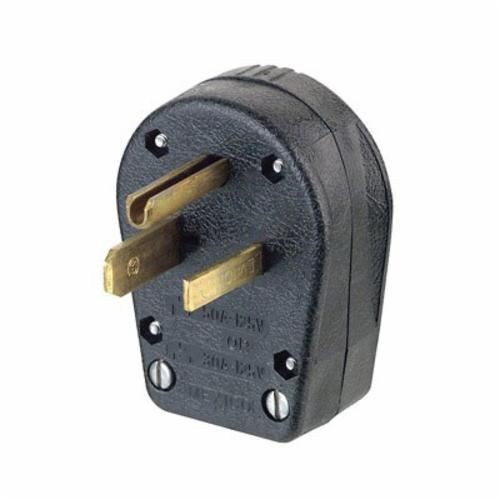

Leviton® 930 Angled Cable Mount Grounding Straight Blade Plug, 125 VAC, 30 A, 50 A, 2 Poles, 3 Wires, Black

Selected 930Leviton® 930 Angled Cable Mount Grounding Straight Blade Plug, 125 VAC, 30 A, 50 A, 2 Poles, 3 Wires, Black
930Leviton® 930 Angled Cable Mount Grounding Straight Blade Plug, 125 VAC, 30 A, 50 A, 2 Poles, 3 Wires, Black

Documents

Short Description

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. They are also ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Features

  • Tough thermoplastic shell for long life
  • Shell and bottom are hinged in front for ease of assembly
  • Solid brass blades with color coded terminals simplify wiring
  • Each dual combination plug supplied with 30 A blades and flat 50 A blade
  • Interchangeable blades eliminate need for stocking different devices
  • Built-in rejection feature prevents closure if blades are incorrectly positioned
  • Wiring stripping gauge molded into plug cover
  • Zinc plated steel assembly screws and solid brass blade and contacts
  • 14 to 6 AWG terminal accommodation

Specification

Grade
Commercial
Material
Thermoplastic
NEMA Rating
NEMA 5-30P/5-50P
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
Type
Angled Cable Mount Grounding
Voltage Rating
125 VAC
Application
Commercial Applications
Standard & Approvals
RoHS Compliant, ANSI C-73, NOM 057, CSA C22.2 No. 42, CSA File No. LR406, UL 498 File No. E13393
Amperage Rating
30 A, 50 A
Dimensions
3.49 in H x 2.56 in W x 1.44 in D
Color
Black
Cord Diameter
0.63 to 1.05
