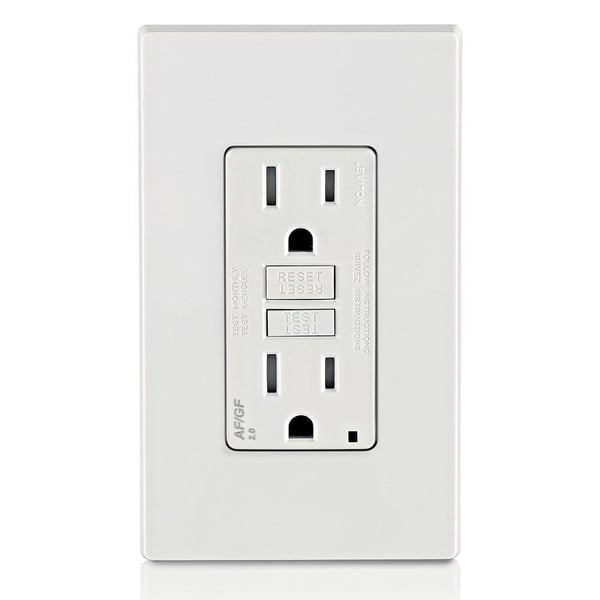

Leviton® Decora® AGTR1-W Dual Function Monochromatic Tamper-Resistant AFCI/GFCI Receptacle With LED Indicator, 125 V AC, 15 A, 2 Poles, 3 Wires, White

Selected Leviton AGTR1 W
Leviton AGTR1 W

Documents

Short Description

The SmartlockPro® dual function AFCI/GFCI receptacle offers protection both from electrical fires that could result from arc-faults and from electrical shock due to ground faults in one smart device. Through advanced technology, the SmartlockPro® dual function AFCI/GFCI receptacle helps protect home and family by working to detect arc-fault and ground fault hazards and, if detected, quickly cuts off power to help avoid a potential fire or shock occurrence. The SmartlockPro® dual function AFCI/GFCI receptacle offers a National Electrical Code (NEC) compliant option for AFCI/GFCI protection in residential kitchens and laundry areas for new construction, modifications/extensions and replacement receptacles. It is also ideal as a replacement for ungrounded receptacles, satisfying NEC requirements for both AFCI and GFCI protection.

Features

  • Trip threshold meets or exceeds UL requirements for tripping time on ground faults and ON both series and parallel arcs for optimal safety
  • On initial power up, tests the GFCI circuit within 3 sec
  • Patented lockout action prevents reset if the device is damaged
  • Test and reset buttons are readily accessible on the face of the device
  • Improved immunity to high frequency noise reduces nuisance tripping
  • Superior resistance to electrical surges and over voltages enhancing reliability
  • Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed)
  • 1-piece T-design trip latch mechanism provides efficient operation
  • Impact-resistant thermoplastic cover and body for durability

Specification

Number Of Poles
2
Amperage Rating
15 A
Number of Wires
3
Voltage Rating
125 V AC
Dimensions
1.68 in W x 1.3 in D x 4.21 in H
NEMA Rating
NEMA 5-15R
Terminal Type
Back/Side Wire
Type
Dual Function Monochromatic Tamper-Resistant
Horsepower
1 hp
Material
Polycarbonate
Temperature Rating
-35 to 66 deg C
Color
White
