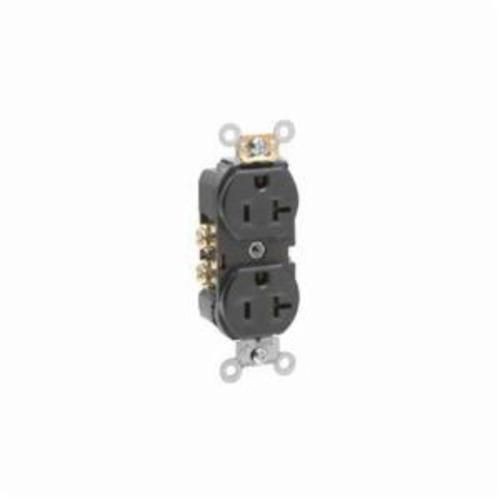

Leviton® BR20-E Heavy Duty Narrow Body Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Selected BR20-ELeviton® BR20-E Heavy Duty Narrow Body Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
BR20-ELeviton® BR20-E Heavy Duty Narrow Body Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Documents

Short Description

Leviton® line of Heavy Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor ins choice for use in hotels, schools, hospitals and commercial office buildings.

Features

  • Manufactured to withstand the demands of commercial and institutional applications
  • Heavy duty brass power contacts for maximum conductivity and plug retention
  • Shallow design for maximum wiring room in box
  • Self grounding
  • Brass triple wipe 0.031 thick line contact
  • Brass 10-32 terminal screws
  • Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability
  • Max 30C after 250 cycles OL at 200 percent rated current
  • Duplex, narrow body
  • 14 - 10 AWG wire size

Specification

Grade
Commercial
Material
Nylon
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
Terminal Type
Back and Side Wired
Type
Traditional
Voltage Rating
125 VAC
Amperage Rating
20 A
Color
Black
Horsepower
1 hp
Dimensions
4.06 in H x 1.56 in W x 1.09 in D
Standard & Approvals
NEMA WD-1/WD-6, ANSI C-73 Approved, CSA C22.2 No 42 File NO 152105 Certified, UL 498 File NO E13399 Listed, NOM 057 Approved
Application
Hotels, Schools, Hospitals and Commercial Office Buildings
