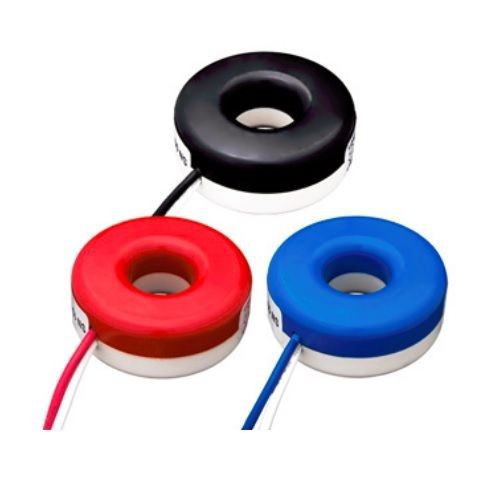

Leviton® CDA01-312 Solid Core Sub-Metering Current Transformer Kit, 100:0.1 Current Ratio, 100 A Primary, 0.1 A Secondary

Selected CDA01-312Leviton® CDA01-312 Solid Core Sub-Metering Current Transformer Kit, 100:0.1 Current Ratio, 100 A Primary, 0.1 A Secondary
CDA01-312Leviton® CDA01-312 Solid Core Sub-Metering Current Transformer Kit, 100:0.1 Current Ratio, 100 A Primary, 0.1 A Secondary

Documents

Short Description

Leviton® current transformers (CTs) support our full line of VerifEye™ revenue grade meters and help meet all measurement and verification based opportunities including smart metering and LEED rating achievement. Designed as part of a simple and effective process for accurately capturing measurements of power consumption, CTs are easy to specify and install for new construction and retrofits. The better the equipment, the better the measurement. Leviton® meters utilize highly accurate current transformers for revenue grade performance certified to ANSI standards. Competing products use current sensors that do not provide the same level of performance. CTs come as solid core standard for high quality, long term accuracy and reliability. Solid core CTs deliver +/-0.3% accuracy. Split core and Rogowski coil CTs deliver +/-1.0% accuracy. For added safety, all Leviton® current transformers come with built-in voltage suppression devices that prevent hazardous voltages from developing on CT secondaries should they become disconnected from a meter with load current present. Leviton® CTs are UL and cUL listed devices.

Features

  • Solid core CTs are cost-effective and less susceptible to damage during installation
  • Solid core CTs slip over power lines to measure the electrical current flowing through the line
  • The CT secondary wires connect to the meter facilitating power and energy calculations
  • They are compact and cost-effective
  • Solid core CTs are accurate (0.3% maximum error)
  • For installation, power must be de-energized and the circuit opened in order to slip the CT over the power line

Specification

Color
Blue/Red/Black
Standard & Approvals
ARRA and Buy American Act Compliant, ANSI Specified, ASHRAE 90.1, CSA C22.2 No. 61010-1, Title 24 Compliant, UL 916
Application
Commercial, Industrial Facilities, Retail, Street and Stadium Lighting Applications
Suitable For Use With
Mini-Meters, MMUs, Sub-Metering Current Transformer Kits
Specifications
100:0.1 A Current Ratio
Dimensions
0.72 in ID x 2.06 in OD x 26 in W x 0.82 in H
